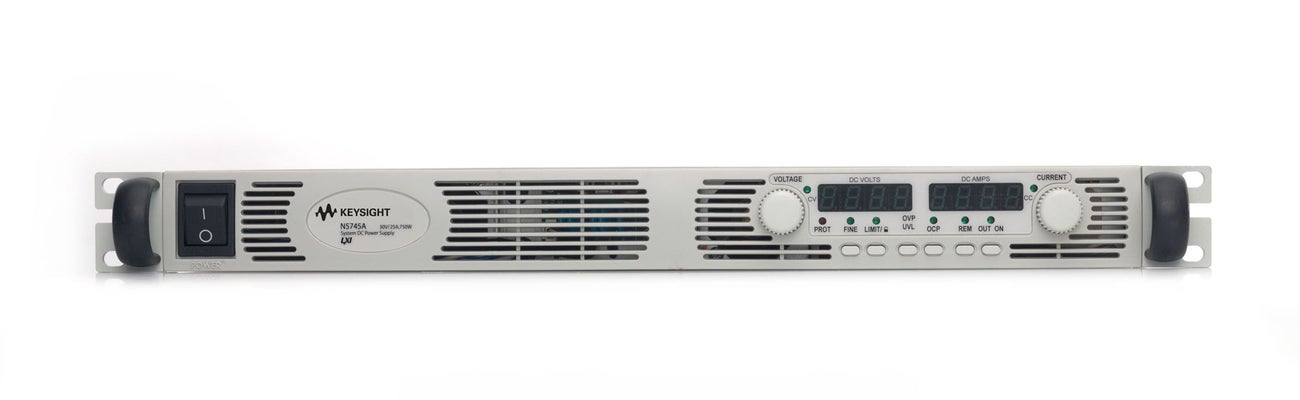

The Keysight N5700 Series delivers low noise power in a compact 1U package. Airflow moves front to back, so no additional space is required above or below the power supply in your automated test equipment (ATE) rack. Select output voltages from 6 to 600 V. For low current applications, the 750 W models provide 1.3 to 100 A. For higher current needs the 1500 W models provide twice as much current.
Key Features
Small high-density 1U package
Low noise output as low as 8 mVrms
Extensive device protection: overcurrent, overvoltage, and under-voltage
Simple front panel operation — separate voltage and current knob
Modern I/O: USB, LAN (LXI-Core), and GPIB
Front to back airflow simplifies rack mounting
Power supply overtemperature protection
Connect up to 4 units in parallel for higher current
Universal AC input: 85 to 265 Vac
Specifications
N5700 Series ATE System Power Supplies
750 W Output
Model
Voltage
Current
Power
N5741A
6 V
100 A
600 W
N5742A
8 V
90 A
720 W
N5743A
12.5 V
60 A
750 W
N5744A
20 V
38 A
760 W
N5745A
30 V
25 A
750 W
N5746A
40 V
19 A
760 W
N5747A
60 V
12.5 A
750 W
N5748A
80 V
9.5 A
760 W
N5749A
100 V
7.5 A
750 W
N5750A
150 V
5 A
750 W
N5751A
300 V
2.5 A
750 W
N5752A
600 V
1.3 A
780 W
Specifications
N5700 Series ATE System Power Supplies
1500 W Output
Model
Voltage
Current
Power
N5761A
6 V
180 A
1080 W
N5762A
8 V
165 A
1320 W
N5763A
12.5 V
120 A
1500 W
N5764A
20 V
76 A
1520 W
N5765A
30 V
50 A
1500 W
N5766A
40 V
38 A
1520 W
N5767A
60 V
25 A
1500 W
N5768A
80 V
19 A
1520 W
N5769A
100 V
15 A
1500 W
N5770A
150 V
10 A
1500 W
N5771A
300 V
5 A
1500 W
N5772A
600 V
2.6 A
1560 W
