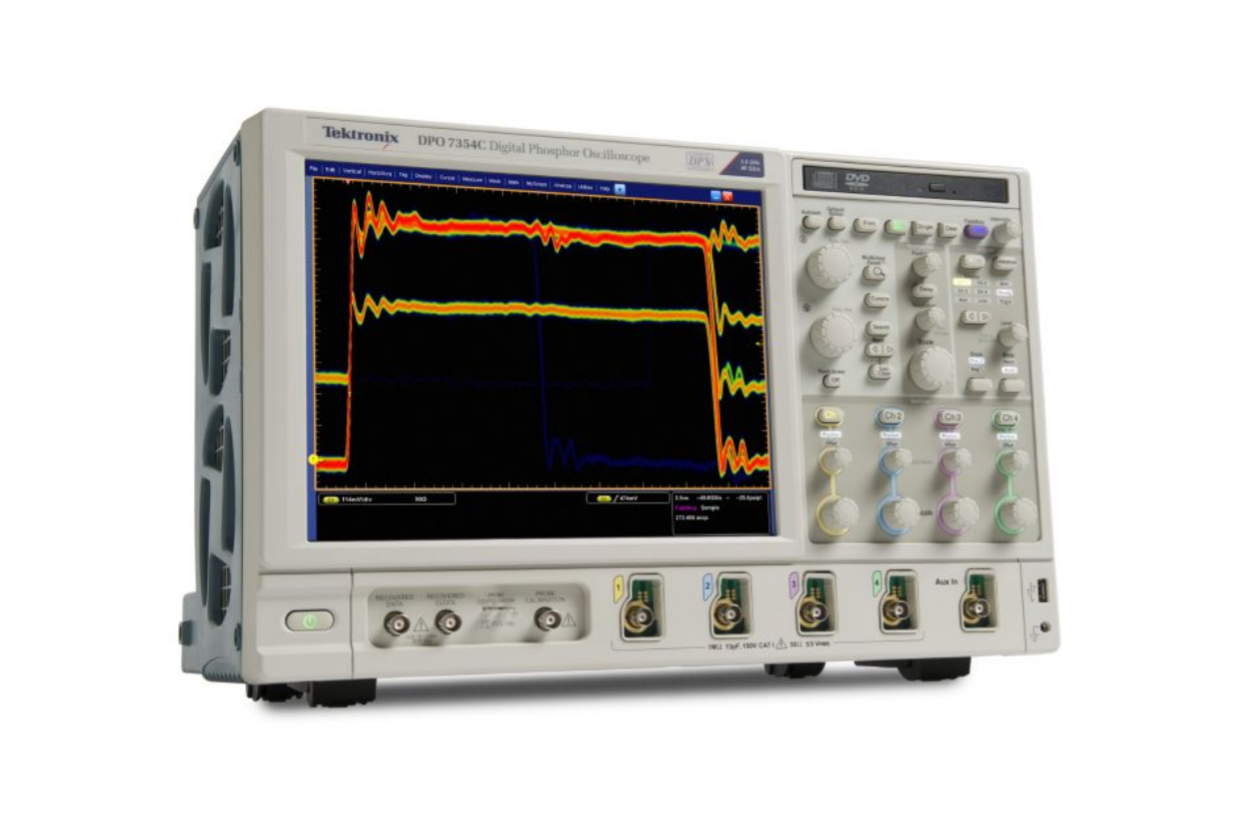

Tektronix DPO7354C
Digital Phosphor Oscilloscope; 4-Channel, 3.5GHz
型号
DPO7354C产品类别
Oscilloscopes & Logic Analyzers制造商
Tektronix配置型号包含以下特性:
Oscilloscopes & Logic AnalyzersOscilloscopes > 3GHz - < 8GHz10 GS/s1GHz <= 10GHz配置
技术指标
产品总览
资源
选择您的配置
显示:
Tektronix DPO7354C的可用选项
| 选项 | 说明 |
|---|---|
| DDR Memory Bus Analysis | |
| Jitter and Eye Analysis s | |
| USB2.0 Compliance | |
| 10X Passive Probe |
显示中 1 - 3 的 3 结果
1
3.5GHz 4CH Digital Phosphor Scope
产品编号: P-607441
2
3.5GHz 4CH Digital Phosphor Scope; 10X Passive Probe
产品编号: P-614773
P6139A • 10X Passive Probe
3
3.5GHz 4CH Digital Phosphor Scope
产品编号: P-608640
DPO7354C DDRA • DDR Memory Bus AnalysisDPO7354C DJA • Jitter and Eye Analysis sDPO7354C USB2 • USB2.0 Compliance
显示中 1 - 3 的 3 结果
* 价格及供应情况如有更改，恕不另行通知。所有价格可能因运输条款、增值税或销售税、进口关税和汇率而有所不同。产品可能不是在所有地区都能买到。任何列出的折扣是基于全新仪器的售价并仅供参考;实际折扣可能会因选项、配置、货币汇率和其他因素而有所不同。保修期可能因仪器类别或特定产品而有差异。所有条款均需通过完整的书面报价确认。
1 对于我们的品质二手仪器，在发货前需要进行23步认证检查
技术指标
在选择附件时标明其特性， 有关附件详细信息请参见“配置”选项。
| 特性 | 参数 |
|---|---|
| Maximum Sample/Data Rate | 10 GS/s |
| High Frequency (range) | 1GHz <= 10GHz |
产品总览
泰克 DPO7354C 数字荧光示波器提供功能丰富的工具来简化操作并快速诊断和调试复杂的混合信号设计。DPO7354C 示波器的高带宽通过逐个通道优化示波器的性能，有助于实现更准确的设计表征。其快速的实时采样率通过准确地采样信号来改进设计验证，以确保所有频率内容都被采集和显示。Wave Inspector 控件可轻松导航和自动搜索波形数据。泰克 DPO7354C 示波器具有内置分析工具，可提供 53 种自动测量，包括测量统计、直方图、高级波形数学、用户可定义滤波器以及自定义 MATLAB 和 .NET 数学插件。
The DPO7000 Series are the new generation of real-time digital phosphor oscilloscopes and are the industry’s best solution to the challenging signal integrity issues faced by designers verifying, characterizing, debugging, and testing sophisticated electronic designs.
The family features exceptional performance in signal acquisition and analysis, operational simplicity, and unmatched debugging tools to accelerate your day-to-day tasks. The largest screen in the industry and the intuitive user interface provide easy access to the maximum amount of information.
Bandwidths up to 3.5 GHz and sampling rates up to 40 GS/s make the DPO7000C Series a natural choice for analyzing critical, high-speed signals. Over 30 analysis packages provide in-depth measurements for communications standards, jitter analysis, memory bus standards, vector analysis and more. Plus, the Windows operating system lets you run your own analysis software right on the instruments.
| Key Features |
| 3.5 GHz Bandwidth Model for Serial and Digital Applications |
| 2.5 GHz, 1 GHz, and 500 MHz Bandwidth Models for All Applications |
| Up to 40 GS/s Real-time Sample Rate on One Channel and up to 10 GS/s on All Four Channels |
| Up to 500 Megasamples Record Length with MultiView Zoom™ Feature for Quick Navigation |
| >250,000 wfms/s Maximum Waveform Capture Rate |
| Up to 310,000 Waveforms per Second with FastFrame™ Segmented Memory Acquisition Mode |
| User-selectable Bandwidth Limit Filters for Better Low-frequency Measurement Accuracy |
| MyScope® Custom Windows and Right Mouse Click Menus for Exceptional Efficiency |
| Event Search and Mark to Find Specific Events in the Entire Waveform |
| Pinpoint® Triggering provides the Most Flexible and Highest Performance Triggering, with Over 1400 Combinations to Address Virtually Any Triggering Situation. |
| 12.1” XGA Display with Touch Screen |
| Communications Mask Testing |
| Clock Recovery from Serial Data Streams |
| 64-bit NRZ Serial Pattern Trigger for Isolation of Pattern-dependent Effects up to 1.25 Gb/s |
| Low-speed Serial Protocol Triggering and Decode (I2C, SPI, RS-232, CAN, LIN, and FlexRay) |
| Technology-specific Software Solutions provide Built-in Domain Expertise for MIPI® D-PHY, Ethernet, USB 2.0 Compliance Testing, Jitter, Timing, Eye Diagram, Power, DDR Memory Bus Analysis, CAN, LIN, and FlexRay Network Design |
| OpenChoice® Software with Microsoft Windows XP OS enables Built-in Networking and Extended Analysis |
| Specifications | ||||
| DPO7000C Series Digital Phosphor Oscilloscopes | ||||
| Model Overview | ||||
| Model | DPO7054C | DPO7104C | DPO7254C | DPO7354C |
| Input Channels | 4 | 4 | 4 | 4 |
| Bandwidth | 500 MHz | 1 GHz | 2.5 GHz | 3.5 GHz |
| Rise Time 10% to 90% (Typical) | 460 ps | 300 ps | 160 ps | 115 ps |
| Rise Time 20% to 80% (Typical) | 310 ps | 200 ps | 100 ps | 95 ps |
| DC Gain Accuracy | ±1% with offset/position set to 0 | ±1% with offset/position set to 0 | ±1% with offset/position set to 0 | ±1% with offset/position set to 0 |
| Bandwidth Limits | Depending on instrument model: 3.0 GHz, 2.5 GHz, 2 GHz, 1 GHz, 500 MHz, 250 MHz, 20 MHz | Depending on instrument model: 3.0 GHz, 2.5 GHz, 2 GHz, 1 GHz, 500 MHz, 250 MHz, 20 MHz | Depending on instrument model: 3.0 GHz, 2.5 GHz, 2 GHz, 1 GHz, 500 MHz, 250 MHz, 20 MHz | Depending on instrument model: 3.0 GHz, 2.5 GHz, 2 GHz, 1 GHz, 500 MHz, 250 MHz, 20 MHz |
| Effective Number of Bits * | 6.8 bits | 6.7 bits | 5.6 bits | 5.6 bits |
Note:
* (Typical, sine wave input at instrument bandwidth, 50 mV/div, 50 Ω Input Impedance, maximum sample rate, 20k point record length)
| Specifications | ||||
| DPO7000 Series Digital Phosphor Oscilloscopes | ||||
| Model Overview | ||||
| Model | DPO7054 | DPO7104 | DPO7254 | DPO7354 |
| Input Channels | 4 | 4 | 4 | 4 |
Bandwidth (DSP Bandwidth Enhance) | 500 MHz | 1 GHz | 2.5 GHz | 3.5 GHz*1 |
Rise Time (DSP Bandwidth Enhance) | 460 ps | 300 ps | 160 ps | 115 ps |
| Hardware Analog Bandwidth (–3 dB) | 500 MHz | 1 GHz | 2.5 GHz | 2.5 GHz |
| Rise Time 10% to 90% (Typical) | 460 ps | 300 ps | 160 ps | 145 ps |
| Rise Time 20% to 80% (Typical) | 310 ps | 200 ps | 100 ps | 95 ps |
| DC Gain Accuracy | ±1% with offset/position set to 0 | ±1% with offset/position set to 0 | ±1% with offset/position set to 0 | ±1% with offset/position set to 0 |
| Bandwidth Limits | Depending on instrument model: 3.0 GHz, 2.5 GHz, 2 GHz, 1 GHz, 500 MHz, 250 MHz, 20 MHz | Depending on instrument model: 3.0 GHz, 2.5 GHz, 2 GHz, 1 GHz, 500 MHz, 250 MHz, 20 MHz | Depending on instrument model: 3.0 GHz, 2.5 GHz, 2 GHz, 1 GHz, 500 MHz, 250 MHz, 20 MHz | Depending on instrument model: 3.0 GHz, 2.5 GHz, 2 GHz, 1 GHz, 500 MHz, 250 MHz, 20 MHz |
| Input Coupling | AC, DC, GND | AC, DC, GND | AC, DC, GND | AC, DC, GND |
| Input Impedance (Software selectable) | 1 MΩ ±1% with 13 pF ±2 pF or 50 Ω ±1% | 1 MΩ ±1% with 13 pF ±2 pF or 50 Ω ±1% | 1 MΩ ±1% with 13 pF ±2 pF or 50 Ω ±1% | 1 MΩ ±1% with 13 pF ±2 pF or 50 Ω ±1% |
| Input Sensitivity | 1 MΩ: 1 mV/div to 10 V/div 50 Ω: 1 mV/div to 1 V/div | 1 MΩ: 1 mV/div to 10 V/div 50 Ω: 1 mV/div to 1 V/div | 1 MΩ: 1 mV/div to 10 V/div 50 Ω: 1 mV/div to 1 V/div | 1 MΩ: 1 mV/div to 10 V/div 50 Ω: 1 mV/div to 1 V/div |
| Vertical Resolution | 8 bit (>11 bit with Hi Res) | 8 bit (>11 bit with Hi Res) | 8 bit (>11 bit with Hi Res) | 8 bit (>11 bit with Hi Res) |
| Max Input Voltage, 1 MΩ | ±150 V CAT I, derate at 20 dB/decade to 9 VRMS above 200 kHz | ±150 V CAT I, derate at 20 dB/decade to 9 VRMS above 200 kHz | ±150 V CAT I, derate at 20 dB/decade to 9 VRMS above 200 kHz | ±150 V CAT I, derate at 20 dB/decade to 9 VRMS above 200 kHz |
| Max Input Voltage, 50 Ω | 5 VRMS, with peaks less than ±24 V | 5 VRMS, with peaks less than ±24 V | 5 VRMS, with peaks less than ±24 V | 5 VRMS, with peaks less than ±24 V |
| Position Range | ±5 divisions | ±5 divisions | ±5 divisions | ±5 divisions |
| Offset Range | 1 mV/div to 50 mV/div: ±1 V 50.5 mV/div to 99.5 mV/div: ±(1.5 V – 10 divisions) 100 mV/div to 500 mV/div: ±10 V 505 mV/div to 995 mV/div: ±(15 V – 10 divisions) 1 V/div to 5 V/div: ±100 V 5.05 V/div to 10 V/div: ±(150 V – 10 divisions) | 1 mV/div to 50 mV/div: ±1 V 50.5 mV/div to 99.5 mV/div: ±(1.5 V – 10 divisions) 100 mV/div to 500 mV/div: ±10 V 505 mV/div to 995 mV/div: ±(15 V – 10 divisions) 1 V/div to 5 V/div: ±100 V 5.05 V/div to 10 V/div: ±(150 V – 10 divisions) | 1 mV/div to 50 mV/div: ±1 V 50.5 mV/div to 99.5 mV/div: ±(1.5 V – 10 divisions) 100 mV/div to 500 mV/div: ±10 V 505 mV/div to 995 mV/div: ±(15 V – 10 divisions) 1 V/div to 5 V/div: ±100 V 5.05 V/div to 10 V/div: ±(150 V – 10 divisions) | 1 mV/div to 50 mV/div: ±1 V 50.5 mV/div to 99.5 mV/div: ±(1.5 V – 10 divisions) 100 mV/div to 500 mV/div: ±10 V 505 mV/div to 995 mV/div: ±(15 V – 10 divisions) 1 V/div to 5 V/div: ±100 V 5.05 V/div to 10 V/div: ±(150 V – 10 divisions) |
| Offset Accuracy | 1 mV/div to 9.95 mV/div: ±0.2% (offset value-position) ±0.1 div ±1.5 mV 10 mV/div to 99.5 mV/div: ±0.35% (offset value-position) ±0.1 div ±1.5 mV 100 mV/div to 1 V/div: ±0.35% (offset value-position) ±0.1 div ±15 mV 1.01 V/div to 10 V/div: ±0.25% (offset value-position) ±0.1 div ±150 mV | 1 mV/div to 9.95 mV/div: ±0.2% (offset value-position) ±0.1 div ±1.5 mV 10 mV/div to 99.5 mV/div: ±0.35% (offset value-position) ±0.1 div ±1.5 mV 100 mV/div to 1 V/div: ±0.35% (offset value-position) ±0.1 div ±15 mV 1.01 V/div to 10 V/div: ±0.25% (offset value-position) ±0.1 div ±150 mV | 1 mV/div to 9.95 mV/div: ±0.2% (offset value-position) ±0.1 div ±1.5 mV 10 mV/div to 99.5 mV/div: ±0.35% (offset value-position) ±0.1 div ±1.5 mV 100 mV/div to 1 V/div: ±0.35% (offset value-position) ±0.1 div ±15 mV 1.01 V/div to 10 V/div: ±0.25% (offset value-position) ±0.1 div ±150 mV | 1 mV/div to 9.95 mV/div: ±0.2% (offset value-position) ±0.1 div ±1.5 mV 10 mV/div to 99.5 mV/div: ±0.35% (offset value-position) ±0.1 div ±1.5 mV 100 mV/div to 1 V/div: ±0.35% (offset value-position) ±0.1 div ±15 mV 1.01 V/div to 10 V/div: ±0.25% (offset value-position) ±0.1 div ±150 mV |
| Delay between any Two Channels (Typical) | ≤100 ps (50 Ω, DC coupling and equal V/div at or above 10 mV/div) | ≤100 ps (50 Ω, DC coupling and equal V/div at or above 10 mV/div) | ≤100 ps (50 Ω, DC coupling and equal V/div at or above 10 mV/div) | ≤100 ps (50 Ω, DC coupling and equal V/div at or above 10 mV/div) |
| Channel-to-Channel Isolation (Any two channels at equal Vertical Scale settings) (Typical) | ≥100:1 at ≤100 MHz; ≥30:1 between 100 MHz and 2.5 GHz > 20:1 between 2.5 and 3.5 GHz | ≥100:1 at ≤100 MHz; ≥30:1 between 100 MHz and 2.5 GHz > 20:1 between 2.5 and 3.5 GHz | ≥100:1 at ≤100 MHz; ≥30:1 between 100 MHz and 2.5 GHz > 20:1 between 2.5 and 3.5 GHz | ≥100:1 at ≤100 MHz; ≥30:1 between 100 MHz and 2.5 GHz > 20:1 between 2.5 and 3.5 GHz |
Note:
*1 3GHz for sine wave of more than 4 div amplitude (typically).
| Specifications | |
| DPO7000C Series Digital Phosphor Oscilloscopes | |
| Ordering Information | |
| Model | Description |
| DPO7054C | 500 MHz, 5/10/20 GS/s (4/2/1 ch), 25 M record length, 4-channel digital phosphor oscilloscope |
| DPO7104C | 1 GHz, 5/10/20 GS/s (4/2/1 ch), 25 M record length, 4-channel digital phosphor oscilloscope |
| DPO7254C | 2.5 GHz, 10/20/40 GS/s (4/2/1 ch), 25 M record length, 4-channel digital phosphor oscilloscope |
| DPO7354C | 3.5 GHz, 10/20/40 GS/s (4/2/1 ch), 25 M record length, 4-channel digital phosphor oscilloscope |
