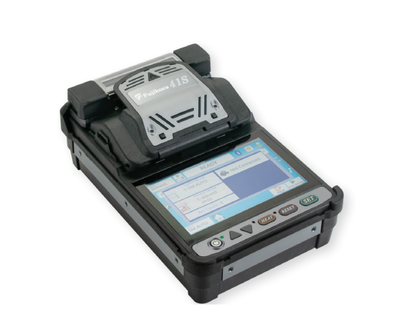

Fujikura 41S (S017091)

FSM-41S Single Fiber Fusion Splicer Kit; with CT-50 Cleaver

型号

41S (S017091)

产品类别

Network & Fiber Installations

制造商

Fujikura

配置型号包含以下特性:

Network & Fiber InstallationsFusion Splicers

配置

技术指标

产品总览

资源

让我们为您提供准确的配置

请使用“获取快速报价”，我们将根据您的需求与您联系并报价。

您也可以选择保持联系，我们会为您提供正确的应用和采购解决方案。

产品总览

The Fujikura 41S is a fully ruggedized, two camera, active cladding alignment fusion splicer. Core sensing loss estimation technology provides the most accurate assessment of splice loss available in any active cladding alignment splicer in the world. Enabled by Warm Splice Imaging (WSI), the 41S can determine the accuracy of core alignment by evaluation of the splice during the heating process. This technology delivers splice loss estimates with a greater level of accuracy as those based on only cladding alignment. State-of-the-art cleaver management via Bluetooth® connection with the CT50 Cleaver tracks usage and enables automated blade rotation as needed. The dual-camera, active V-groove alignment system provides consistent splicing performance in the most challenging conditions.

A 6-second splice time and 25-second shrink time offers unmatched speed and productivity, while an easy-to-use touchscreen monitor provides simple and intuitive menu navigation. Interchangeable sheath clamps or fiber holders provide versatility for user preference, and compatibility with fusion installable connectors. The extended-life battery is rated for up to 200 splice and heat cycles. Long-life electrodes, lasting 5,000 splices, help minimize downtime for replacement and stabilization. The large 5" monitor provides a crystal clear image, even in the brightest sunlight. Software updates are accomplished via the internet allowing users to quickly update their software as new splice programs become available.

Key Features

Warm Splice Imaging (WSI) loss estimation technology

Bluetooth enabled cleaver management

Two camera, active cladding alignment

5" touchscreen monitor

Interchangeable sheath clamps and fiber holders

Fully ruggedized for shock, moisture and dust resistance

Extended-life electrodes, 5,000 splices, exchangeable without tools

Long-life battery (200 splices/shrinks per charge)

Specifications
Fujikura 41S Fusion Splicer
Feature	Parameter
Fiber Alignment Method	Active cladding alignment
Fiber Count can be Spliced	Single fiber
Applicable Optical Fiber	Fiber type: Single mode optical fiber Multi mode optical fiber
Applicable Coating	Cladding diameter: Approx.125 μm Sheath clamp: Coating dia. : Max. 3000 μm Cleave length : 5 to 16 mm
Fiber Splice Performance	Splice loss: ITU-T G.652 : Avg. 0.03 dB ITU-T G.651 : Avg. 0.01 dB ITU-T G.653 : Avg. 0.05 dB ITU-T G.655 : Avg. 0.05 dB ITU-T G.657 : Avg. 0.03 dB Splicing time: SM FAST mode : Avg. 6 sec. AUTO mode : Avg. 9 sec.
Applicable Protection Sleeve	Sleeve type: Heat shrinkable sleeve Sleeve length: Max. 66 mm Sleeve dia.: Max. 6 mm before shrinking
Sleeve Heat Performance	Heat time: 60 mm mode : Avg. 26sec.
Fiber Tensile Test Force	Approx. 2.0 N
Electrode Life	Approx. 5,000 splices
Physical Description	Dimensions W: Approx.131 mm without projection Dimensions D: Approx.201 mm without projection Dimensions H: Approx.79 mm without projection Weight: Approx. 1.3 kg including battery
Environmental Condition	Operating temperature: -10 to 50°C Storage temperature: -40 to 80°C Humidity: 0 to 95% non-condensing Alititude: Max. 5,000m
AC Adaptor	Input: AC100 to 240V, 50/60Hz, Max. 1A Type: Rechargeable Lithium Ion Output: Approx. DC14.4V, 3360mA
Battery Pack	Capacity: Approx. 200 splice and heat cycles Recharge Temperature: 0 to 40°C Storage Temperature: -20 to 30°C Battery life: Approx. 500 recharge cycles
Display	LCD monitor: TFT 5.0 inches with touch screen Magnification: 132 to 300x
Illumination	V-grooves: LED lamp
Interface	PC: USB2.0 MINI B type Wireless: Bluetooth® 4.1 LE
Data Storage	Splice mode: 100 splice modes Heat mode: 30 heat modes Splice result: 10,000 results Fiber image: 100 images
Screw Hole for Tripod	1/4-20UNC
Other Features	Automatic functions: Fiber heat calibration Sheath clamp: Easy sleeve positioning Loss Estimate: Warm splice image estimation Electrode: Tool less replaceable electrode

Specifications
Fujikura 41S Fusion Splicer
Model Overview
Model	Description
Fujikura 41S Fusion Splicer (S017090)	Fujikura 41S Fusion Splicer Includes: S31A Sheath clamps (installed) FH-70-250 Fiber Holders (pair) FH-70-900 Fiber Holders (pair) SP-01 Set Plates ADC-19A AC Adapter BTR-11A Battery Pack (installed) ACC-09 Power Cord ELCT2-16B Spare Electrodes (pair) Screwdriver Operation Manual on CD Quick Reference Guide SS-03 Single Fiber Stripper CC-36 Transit Case
Fujikura 41S Fusion Splicer Kit with CT50 Cleaver (S017091)	Fujikura 41S Fusion Splicer Includes: CT50 Cleaver S31A Sheath clamps (installed) FH-70-250 Fiber Holders (pair) FH-70-900 Fiber Holders (pair) SP-01 Set Plates ADC-19A AC Adapter BTR-11A Battery Pack (installed) ACC-09 Power Cord ELCT2-16B Spare Electrodes (pair) Screwdriver Operation Manual on CD Quick Reference Guide SS-03 Single Fiber Stripper CC-36 Transit Case
S012996	One Year Extended Warranty
S013000	Two Year Extended Warranty
