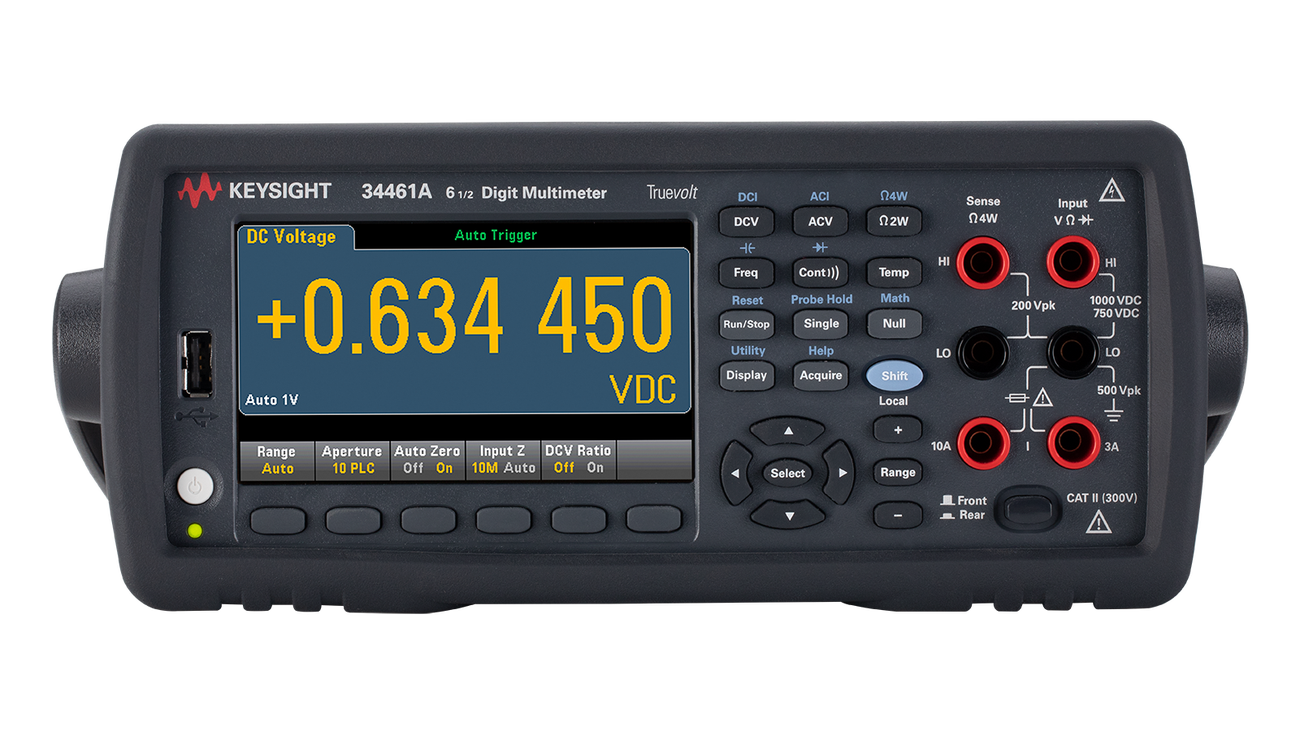

Keysight Technologies (formerly Agilent) 34461A | 6 1/2 Digit Digital Multimeter | Electro Rent

选项	说明
34461A-100	100-volt ac line selection
34461A-120	120-volt ac line selection
34461A-220	220-volt ac line selection
34461A-240	240-volt ac line selection
34461A-GPB	GPIB user installable interface module for Truevolt series DMMs
34461A-PLG	Continental European power cord - ONLY FOR EU DISTR W MULT PWR CORD STANDARDS
34461A-SEC	Enable NISPOM and file security for Truevolt series DMMs
34461A-Z54	Certificate of calibration - ANSI/NCSL Z540.3-2006, printed
DEMACC	Demo Accessories
R-50C-011-3	Calibration Assurance Plan - Return to Keysight - 3 years
R-50C-011-5	Calibration Assurance Plan - Return to Keysight - 5 years
R-50C-011-MU-3	Calibration + Uncertainties - 3 years
R-50C-011-MU-5	Calibration + Uncertainties - 5 years
R-50C-016-3	Calibration + Uncertainties + Guardbanding - 3 years
R-50C-016-5	Calibration + Uncertainties + Guardbanding - 5 years
R-50C-021-3	ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5	ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-5Z	Warranty Assurance Plan - Return to Keysight - 5 years
R1295D	Predelivery Accredited Calibration

产品总览

Keysight’s Truevolt Digital Multimeters (DMMs) offer a full range of measurement capabilities and price points with higher levels of accuracy, speed, and resolution. Get more insight quickly Truevolt DMM's graphical capabilities such as trend and histogram charts offer more insights quickly. Both models also provide a data logging mode for easier trend analysis and a digitizing mode for capturing transients. Measure low-power devices The ability to measure very low current, 1 μA range with pA resolution, allows you to make measurements on very low power devices. Maintain calibrated measurements Auto calibration allows you to compensate for temperature drift so you can maintain measurement accuracy throughout your workday.

Key Features

Histogram, bar and trend charts on 4.3-inch color graphical display ease monitoring and speed up statistical analysis

Measure with confidence, with 35 ppm basic DCV accuracy

Test low power devices with low DC current measurement range from 100 µA to 10 A

Flexibly automate measurements over USB or LAN/LXI core interface

Migrate with confidence from legacy model 34401A

A BenchVue software license BV0001B is now included with your instrument

Specifications
Features	Parameters
Benchtop	Yes
Digits of Resolution	6 ½
Display Type	n/a
Max. Reading Speed	1,000 readings/s
Basic 1-Year DCV Accuracy	0.0035%
Measurement Functions	DCV and ACV DCI and ACI 2- and 4-wire Resistance Frequency Capacitance Diode test Continuity test Temperature
Internal Memory	n/a
Connectivity	USB, LAN/LXI core
Software	n/a
Statistical Graphics	Histogram Bar chart Trend chart
Rear Input Terminals	Yes

Specifications
Digital Multimeter Overview
Model	34460A	34461A	34465A	34470A
Digits of Resolution	6½	6½	6½	7½
Basic DCV Accuracy	75 ppm	35 ppm	30 ppm	16 ppm
Max Reading Rate	300 rdgs/s	1,000 rdgs/s	50,000 rdgs/s	50,000 rdgs/s
Memory	1,000 rdgs	10,000 rdgs	50,000 rdgs std 2 million rdgs opt	50,000 rdgs std 2 million rdgs opt

Specifications
34461A Digital Multimeter
Options
Model Number	Description
34461A-240	AC line selection 240-volt
34461A-220	AC line selection 220-volt
34461A-120	AC line selection 120-volt
34461A-100	AC line selection 100-volt
34461A-PLG	Continental European power cord - ONLY FOR EU DISTR W MULT PWR CORD STANDARDS
34461A-Z54	ANSI/NCSL Z540.3-2006 Calibration
34461A-SEC	NISPOM and file security for Truevolt series DMMs
34461A-GPB	GPIB interface module for Truevolt series DMMs
