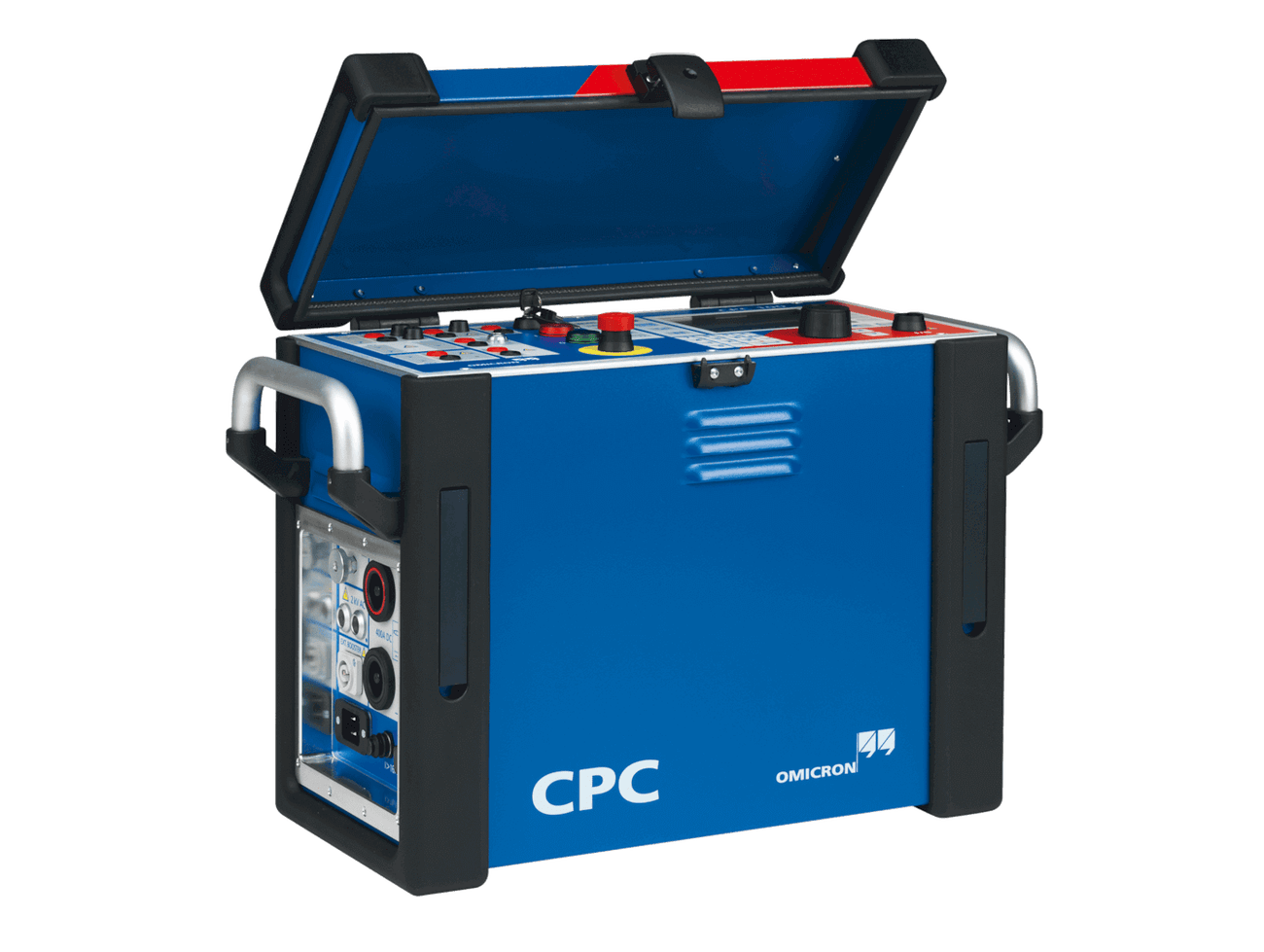

The patented CPC 100 primary injection test system replaces several individual testing devices. This reduces the costs for training and transport, and cuts down testing time. Therefore, the CPC 100 is the ideal test set for substation asset commissioning and maintenance. You can operate the CPC 100 via the integrated front panel, or by using the Primary Test ManagerTM (PTM) software on your laptop.
CPC 100 Standard Package includes CPC 100 Basic Package plus:
- Package including CPC 100 and all accessories to perform common electrical tests on instrument and power transformers.
| Key Features |
| Up to 800 A or 2000 V with up to 5 kVA over a frequency range of 15 Hz - 400 Hz or 400 A DC |
| Excellent interference suppression facilitates measurement of small signals |
| Easy to transport (just 29 kg) – ideal for on-site testing |
| Testing templates, automatically generated testing procedures and test reports |
| Up to 2000 A or 12 kV/ 15kV through use of current or voltage amplifiers |
| Applications |
| Voltage transformers (VT) |
| Current transformers (CT) |
| Transformers |
| Rotating Machines |
| Grounding Systems |
| Lines and Cables |
| Circuit Breakers |
| Package Content |
|
| Omicron VE000611 |
|
| Software |
|
| CP CT Test Card | 1 |
| CP VT Test Card | 1 |
| CP Transformer Test Card | 1 |
| CP resistance test cards | 1 |
| Cables and accessories |
|
| CP SA1 Surge Arrestor box | 1 |
