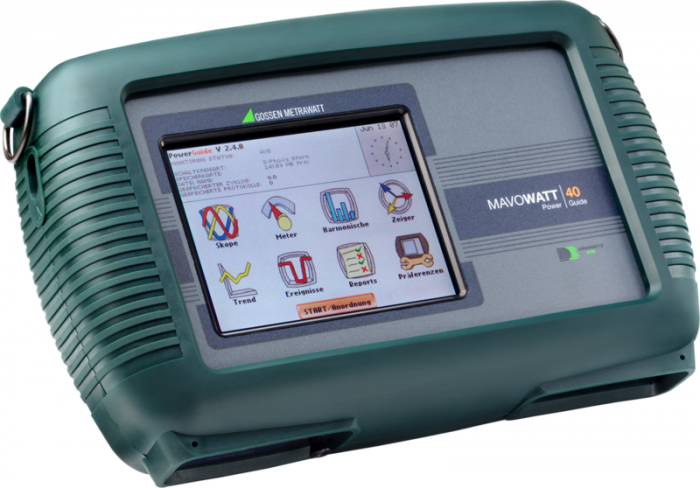

GMC-I MAVOWATT40

Description


3-Phase Energy and Power Disturbance Analyzer PowerGuide

The MAVOWATT 30 has 8 measuring channels: 4 for voltage and 4 for current. The measuring configuration and the type of electrical circuit is selected automatically based upon detected measured quantities. The type of utilized monitoring with automatic limit value definition is easy to select. The instrument can be operated with the help of icons which appear at the color touch-screen.

• Power and mains disturbance analysis
• 8 measuring channels: 4 for voltage (differential) and 4 for current (current sensor), for measurements at 50 / 60 Hz power frequency
• Harmonic analysis per EN 61000-4-7
• Mains quality per EN50160 with statistic bar chart
• Flicker analysis per EN 61000-4-15
• Recording of switch-on effects and fault note
• Integrated analysis module for the direction of the voltage drop, switching tops of the power factor correction and the quality of motors
• Data storage to CompactFlash memory cards =4 GB (in scope of supply)
• Power supply via charging device 90-264 V / 47-63 Hz
• Built-in accumulator for up to 3 hour operating time
• Optional: RS232, USB or LAN interface; current measuring accessories
