快速报价: Keysight Technologies M8062A

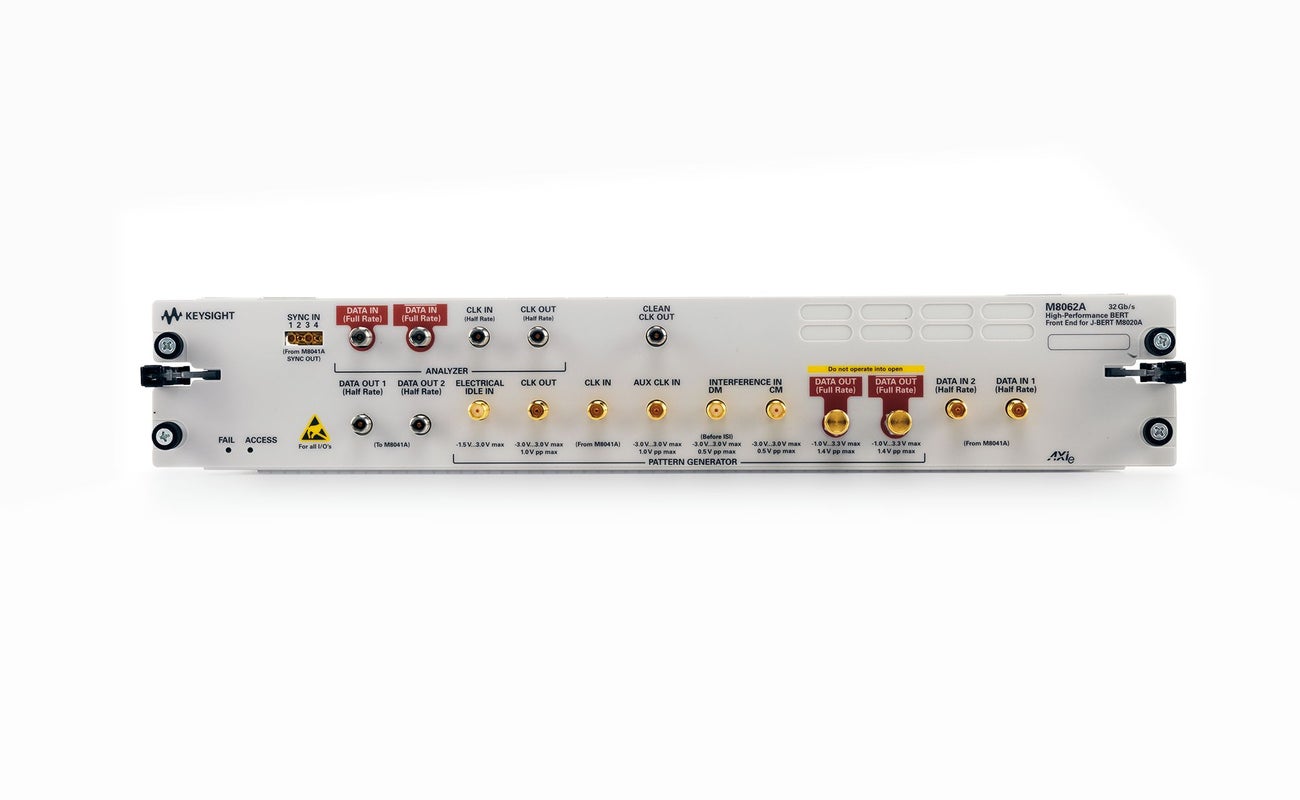

Keysight Technologies M8062A
32Gb/s BERT Front End; for M8020A
型号
M8062A产品类别
Digital Design制造商
Keysight Technologies配置型号包含以下特性:
Digital DesignBER Testing 2G-12GB/s配置
技术指标
产品总览
资源
让我们为您提供准确的配置
技术指标
请参考资源中的资料文档或查看产品总览。
如果您想了解更多，请 联系，我们的团队将为您提供帮助。
产品总览
The M8062A 32 Gb/s module expands the J-BERT M8020A high-performance BERT with versatile generator and analyzer functionality at data rates up to 32.4 Gb/s. The newly integrated capabilities streamline testing for R&D and test engineers who need to characterize devices and systems for next-generation data-center and long-haul-communication applications.
Fully integrated capabilities like inter symbol interference generation, clock data recovery and analyzer equalization greatly improve device characterization and compliance testing and significantly simplifies test setups. The M8062A is a 2-slot AXIe module that can be controlled via USB through the integrated user interface of the J-BERT M8020A or through remote programming commands to allow test automation.
| Key Features |
| expands data rate of J-BERT M8020A up to 32.4 Gb/s |
| fully integrated capabilities for higher data-rate testing |
| integrated adjustable inter symbol interference (ISI) helps engineers quickly test over a large range of channel loss without moving cables |
| integrated analyzer equalization ensures accurate BER measurements by opening eyes in the looped-back channel |
| integrated 8 tap de-emphasis allows engineers to emulate transmitter operation and de-embed test setups |
| improved efficiency and accuracy for 100G and beyond testing |
| interactive TxEQ training for 25GBASE-KR and 100GBASE-KR4 |
| control from J-BERT M8020A high-performance BERT |
| Specifications | |
M8062A Front-End for J-BERT M8020A High-Performance BERT | |
| Model Options | Description |
| M8062A-C32 | 32 Gb/s BERT front-end |
| M8062A-G32 | 32 Gb/s Pattern generator front-end |
| M8062A-0G4 | 8-tap de-emphasis license |
| M8062A-0G5 | Adjustable inter-symbol interference license |
| M8062A-0A3 | Analyzer equalization license2 |
| M8062A-0A4 | Clock recovery up to 32 Gb/s1 |
| M8062A-0S6 | SAS-3/SAS-4 transmitter equalization training2 |
| M8062A-0SC | 100GBASE-KR4 and 25GBASE-KR transmitter equalization training2 |
| M8062A-US6 | Upgrade of M8041A to SAS-3 transmitter equalization training |
| M8062A-0SC | 100GBASE-KR4 and 25GBASE-KR transmitter equalization training, module-wide license |
Note:
1 This option is field upgradeable for units with serial number higher than MY55400300. Units with a lower serial number require return to factory for this upgrade.
2 Requires option M8062A-0G4 to allow de-emphasis negotiation.
资源
文件资料
Keysight M8062A 32 Gb/s Front-End for J-BERT M8020A High-Performance BERT Data Sheet
