Basic vector signal analysis (Option 89601200C) provides the foundation of the tools and user interface that make up PathWave Vector Signal Analysis (VSA) software. Explore virtually every facet of today’s most complex signals with views of time, frequency and modulation domains.
Benefit from the flexible GUI capabilities: arbitrary arrangement and sizing of unlimited display traces, each with unlimited markers. Powerful display formats, signal recording and playback, and detailed Help text provide the insight needed for analyzing signals.
Option 89601200C (Replaced the 89601B/BN/BK-200 and BHL).
Key Features |
Measure and analyze signals in the time, frequency and modulation domains |
Support two different mode as synchronous or sequenced for carrier aggregation or multi-measurements |
Analyze data from over 45 supported hardware instruments, or use in simulation tools to verify design |

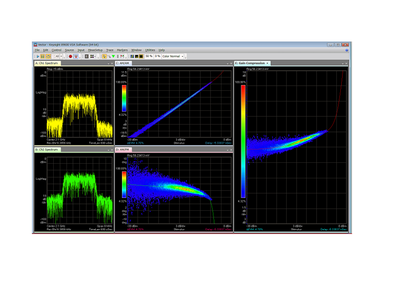

Characterize power amplifier behavior with complex stimulus-response measurements |
Configure, execute and display multiple measurements simultaneously or sequentially with unlimited number of traces and markers |
Record and playback signals for thorough analysis |
Automate tests using .NET language (full coverage) or SCPI (partial coverage) |
