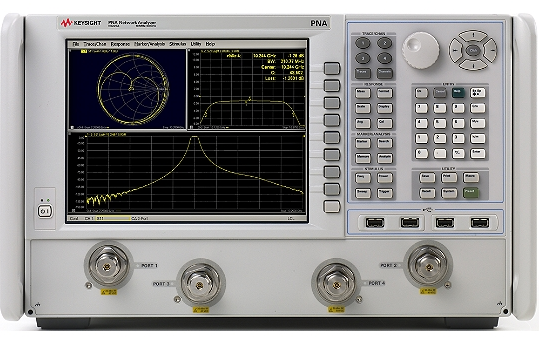

Keysight Technologies N5245A

PNA-X Microwave Network Analyzer; 50 GHz

Modèle

N5245A

Gamme de produits

RF & Microwave Network Analyzers

Fabricant

Keysight Technologies

Cette configuration a les caractéristiques suivantes:

RF & Microwave Network AnalyzersNetwork Analyzers >=20GHz20GHz <= 50GHz1MHz <= 10MHz2.4mm-Male (Jack)Benchtop

Configurations

Caractéristiques principales

Description produit

Ressources

Laissez-nous vous conseiller sur la configuration exacte

Cliquez sur 'Configurez votre produit' et nous vous contacterons pour vous adresser un devis conforme à votre besoin.

Vous pouvez cliquer sur Contactez-moi, si vous préférez, et nos experts vous guideront vers la bonne solution technique et financière.

Caractéristiques principales

Indique les critères de tri possibles. Voir le tableau de configuration.

Attribut	Valeur
High Frequency (range)	20GHz <= 50GHz
Low Frequency (range)	1MHz <= 10MHz
Connector Type	2.4mm-Male (Jack)
Form Factor	Benchtop

Description produit

The PNA-X network analyzer is the world´s most integrated and flexible single-connection microwave test engine for measuring active devices such as amplifiers, mixers, and frequency converters. You can choose from five frequency models to meet your specific device test needs: 13.5, 26.5, 43.5, 50, and 67 GHz. The PNA-X provides unrivaled configuration with a built-in second source, combiner, and internal signal-routing switches.

Key Features

10 MHz to 50 GHz

2- or 4-ports with two built-in sources

126 dB system and 129 receiver dynamic range, 32,001 points, 200 channels, 15 MHz IF bandwidth

High output power (+18 dBm), low harmonics (-60 dBc) and a wide power sweep range (38 dB)

Best dynamic accuracy: 0.1 dB compression with +15 dBm input power at the receiver

Low noise floor of -111 dBm at 10 Hz IF bandwidth

Reach for unrivaled excellence in your measurements and designs

Simplify your test stations by replacing racks and stacks of equipment

Increase productivity with the most integrated and flexible single-connection microwave test engine

Reduce test time with the world’s widest range of single-connection measurement applications

Test linear and nonlinear device characterization more accurately with the world’s best PNA-X

Applications

S-parameters (CW and pulsed)

Noise figure

Gain compression

Intermodulation and harmonic distortion

Conversion gain/loss

True-differential stimulus

Millimeter-wave

Nonlinear waveform and X-parameter® characterization

Antenna test

Specifications
N5245A PNA-X Microwave Network Analyzer
Feature	Parameter
Maximum Frequency	50 GHz
Dynamic Range	124 dB
Output Power	13 dBm
Number of Built-In Ports	2 or 4 ports
Harmonics	-60 dBc
Network Analyzer Series	PNA-X Most Advanced and Flexible
