Devis Rapide: Keysight Technologies MXR604A

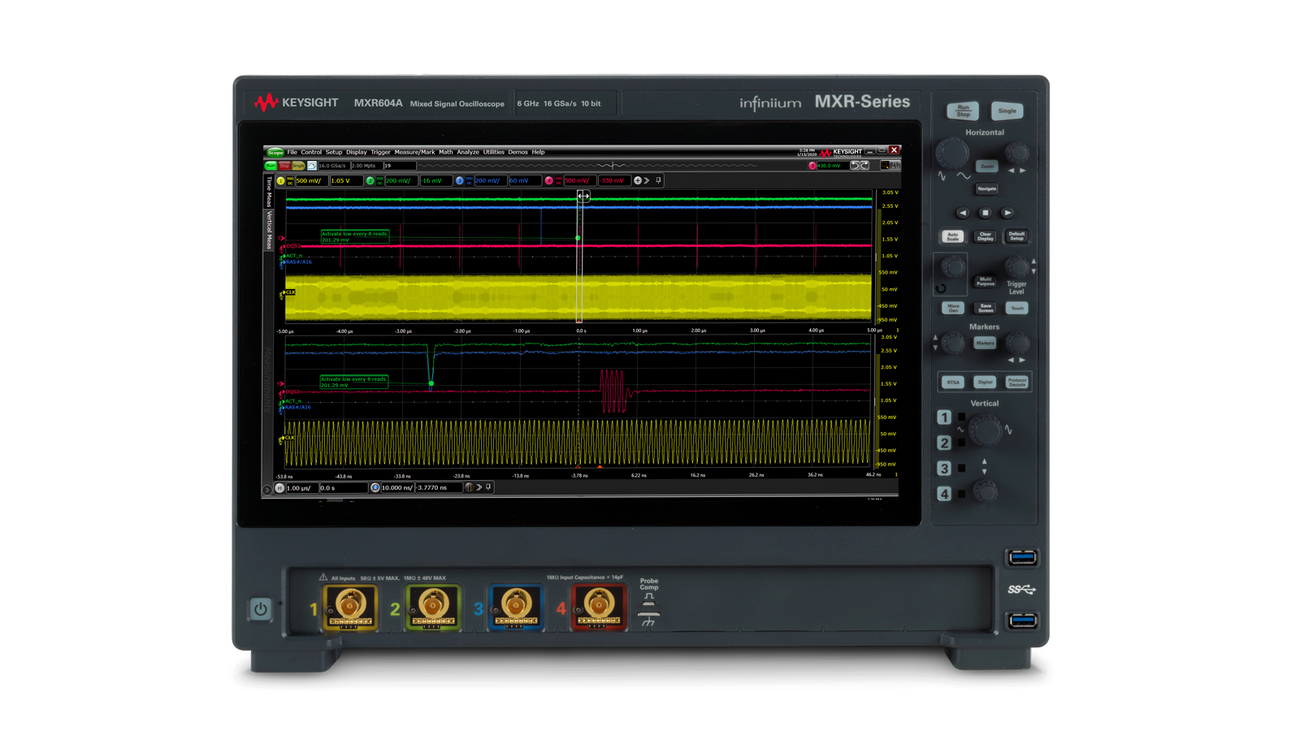

Keysight Technologies MXR604A
Infiniium MXR-Series Real-Time Oscilloscope; 4 Channel, 16 GSa/s, 6 GHz
Modèle
MXR604AGamme de produits
Oscilloscopes & Logic AnalyzersFabricant
Keysight TechnologiesCette configuration a les caractéristiques suivantes:
Oscilloscopes & Logic AnalyzersOscilloscopes > 3GHz - < 8GHzConfigurations
Caractéristiques principales
Description produit
Ressources
Laissez-nous vous conseiller sur la configuration exacte
Cliquez sur 'Configurez votre produit' et nous vous contacterons pour vous adresser un devis conforme à votre besoin.
Vous pouvez cliquer sur Contactez-moi, si vous préférez, et nos experts vous guideront vers la bonne solution technique et financière.
Caractéristiques principales
Désolé, nous n'avons actuellement aucune information concernant les caractéristiques principales de ce produit.
Si vous désirez en savoir plus, merci prendre contact avec notre équipe et l'un de nos experts se fera un plaisir de vous renseigner.
Description produit
The Infiniium MXR-Series oscilloscopes are your window into the intricate interactions of complex designs. Offering illuminating views of all your crucial signals, the MXR-Series helps you go from symptom to root cause to resolution in minutes instead of hours. Leveraging the same hardware acceleration ASIC as the Infiniium UXR-Series, the MXR-Series accelerates eye plots and triggering with the excellent signal integrity that you've come to expect from Keysight. The MXR-Series also lets you future-proof your budget because it is fully upgradeable, including the number of channels and bandwidth.
The MXR604A has 6 GHz on all 4 channels, option to integrate 8 instruments in one, hardware accelerated plotting, and fully upgradeable , including up to 6 GHz and 8 channels
| Key Features |
| 6 GHz on all 4 analog channels |
| Faster test speeds than ever before with ASICs from the Infiniium UXR-Series |
| Accurate measurements with ENOB up to 9.0, noise as low as 43 µV |
| Maximum memory is a flexible 1.6 G points |
| Capabilities are extended with 8-in-1 instrument integration |
| Upgradeable in every possible way — including bandwidth and channel upgrades |
| Benefits | |
| Simplify Data Gathering and Analysis | The MXR-Series offers a robust suite of powerful software for signal integrity, power integrity, protocol decode and trigger applications as well as compliance test applications. |
| MXR-Series Offers | Real-time spectrum analysis, ideal for testing fast-changing signals >750,000 UI/s eye diagrams at 10 bits 6 GHz on 8 channels 16 GSa/s on 8 channels 200 Mpts per channel memory, standard Full upgradeability, no exceptions |
| Specifications | |
| Infiniium MXR-Series | |
| Feature | Parameter |
| Analog Channels | 4 or 8, upgradeable |
| Bandwidth | 500 MHz to 6 GHz, upgradeable |
| Sample Rate | 16 GSa/s |
| Memory | 200 Mpts, upgradeable to 400 Mpts or new 1.6 Gpts flexible memory 1 |
| Resolution | 10 bits, up to 16 with high resolution |
| ENOB | As high as 9.0 |
| Timebase Accuracy | 8 parts per billion |
| Intrinsic Jitter | As low as 118 fs |
| Noise ( 1mV/div) | As low as 43 µV |
| Digital Logic Channels | 16, dedicated input, upgradeable |
| Integrated Tools | 8-in-1 |
| Eye Diagram Speed | > 750,000 UI/s |
| Screen Display | 15.6” touch, full HD, dual screen support |
Note:
1 See data sheet spec tables to learn more about the all-new 1.6 Gpts combined flexible memory option.
| Specifications | ||||||
MXR254A to MXR608A | ||||||
| Model Overview | ||||||
| Model | MXR254A | MXR258A | MXR404A | MXR408A | MXR604A | MXR608A |
| Analog Channels | 4 | 8 | 4 | 8 | 4 | 8 |
| Bandwidth | 2.5 GHz | 2.5 GHz | 4 GHz | 4 GHz | 6 GHz | 6 GHz |
| Minimum Rise/Fall Time | 172 ps (10-90) 124 ps (20-80) | 172 ps (10-90) 124 ps (20-80) | 108 ps (10-90) 78 ps (20-80) | 108 ps (10-90) 78 ps (20-80) | 72 ps (10-90) 52 ps (20-80) | 72 ps (10-90) 52 ps (20-80) |
| ADC Bits | 10, up to 16 with high-res | 10, up to 16 with high-res | 10, up to 16 with high-res | 10, up to 16 with high-res | 10, up to 16 with high-res | 10, up to 16 with high-res |
Effective Number of Bits (ENOB) | As high as 9.0 | As high as 9.0 | As high as 9.0 | As high as 9.0 | As high as 9.0 | As high as 9.0 |
| Max. Memory Depth | 1.6 Gpts | 1.6 Gpts | 1.6 Gpts | 1.6 Gpts | 1.6 Gpts | 1.6 Gpts |
| Noise Floor | 100 µV(rms) | 100 µV(rms) | 132 µV(rms) | 132 µV(rms) | 193 µV(rms) | 193 µV(rms) |
| Max. Sample Rate | 16 GSa/s | 16 GSa/s | 16 GSa/s | 16 GSa/s | 16 GSa/s | 16 GSa/s |
| Specifications | ||||||
MXR054A to MXR208A | ||||||
| Model Overview | ||||||
| Model | MXR054A | MXR058A | MXR104A | MXR108A | MXR204A | MXR208A |
| Analog Channels | 4 | 8 | 4 | 8 | 4 | 8 |
| Bandwidth | 500 MHz | 500 MHz | 1 GHz | 1 GHz | 2 GHz | 2 GHz |
| Minimum Rise/Fall Time | 860 ps (10-90) 620 ps (20-80) | 860 ps (10-90) 620 ps (20-80) | 430 ps (10-90) 310 ps (20-80) | 430 ps (10-90) 310 ps (20-80) | 215 ps (10-90) 155 ps (20-80) | 215 ps (10-90) 155 ps (20-80) |
| ADC Bits | 10, up to 16 with high-res | 10, up to 16 with high-res | 10, up to 16 with high-res | 10, up to 16 with high-res | 10, up to 16 with high-res | 10, up to 16 with high-res |
| Effective Number of Bits (ENOB) | As high as 9.0 | As high as 9.0 | As high as 9.0 | As high as 9.0 | As high as 9.0 | As high as 9.0 |
| Max. Memory Depth | 1.6 Gpts | 1.6 Gpts | 1.6 Gpts | 1.6 Gpts | 1.6 Gpts | 1.6 Gpts |
| Noise Floor | 63 µV(rms) | 63 µV(rms) | 73 µV(rms) | 73 µV(rms) | 91 µV(rms) | 91 µV(rms) |
| Max. Sample Rate | 16 GSa/s | 16 GSa/s | 16 GSa/s | 16 GSa/s | 16 GSa/s | 16 GSa/s |
| Specifications | |
Infiniium MXR-Series Real-Time Oscilloscopes | |
| Model Overview | |
| MXR054A | 500 MHz on all 4 channels, options to integrate 8 instruments in one, hardware accelerated plotting, and fully upgradeable to 6 GHz and 8 channels |
| MXR058A | 500 MHz on all 8 channels, option to integrate up to 8 instruments in one, hardware accelerated plotting, and fully upgradeable to 6 GHz |
| MXR104A | 1 GHz on all 4 channels, option to integrate up to 8 instruments in one, hardware accelerated plotting, and fully upgradeable to 6 GHz and 8 channels |
| MXR108A | 1 GHz on all 8 channels, option to integrate up to 8 instruments in one, hardware accelerated plotting, and fully upgradeable to 6 GHz |
| MXR204A | 2 GHz on all 4 channels, option to integrate up to 8 instruments in one, hardware accelerated plotting, and fully upgradeable to 6 GHz and 8 channels |
| MXR208A | 2 GHz on all 8 channels, option to integrate 8 instruments in one, hardware accelerated plotting, and fully upgradeable , including up to 6 GHz |
| MXR254A | 2.5 GHz on all 4 channels, option to integrate 8 instruments in one, hardware accelerated plotting, and fully upgradeable , including up to 6 GHz and 8 channels |
| MXR258A | 2.5 GHz on all 8 channels, option to integrate 8 instruments in one, hardware accelerated plotting, and fully upgradeable , including up to 6 GHz |
| MXR404A | 4 GHz on all 4 channels, option to integrate up to 8 instruments in one, hardware accelerated plotting, and fully upgradeable , including up to 6 GHz and 8 channels |
| MXR408A | 4 GHz on all 8 channels, option to integrate up to 8 instruments in one, hardware accelerated plotting, and fully upgradeable , including up to 6 GHz |
| MXR604A | option to integrate up to 8 instruments in one, hardware accelerated plotting, and fully upgradeable , including up to 6 GHz and 8 channels |
| MXR608A | 6 GHz on all 8 channels, option to integrate up to 8 instruments in one, hardware accelerated plotting, and fully upgradeable |
| Specifications | |
Infiniium MXR-Series Integrated Tools Option | |
| Option | Description |
| MXR2MSO | 16 digital channels |
| MXR2WAV | 50 MHz waveform generator |
| MXR2RTSA | RTSA, DDC |
| Standard | 4 digit DVM, 10 digit counters |
| Various | Protocol analysis |
Ressources
Ressources de fichiers
Keysight Infiniium MXR-Series Data Sheet
Keysight MXR Series Product Fact Sheet
