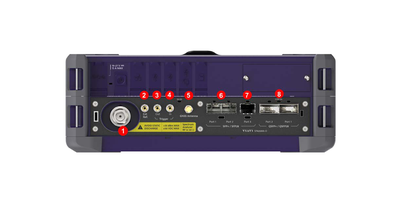

Viavi SPA06MA-O

The SPA06MA-O module is part of a complete system consisting of the module and a ONA800A mainframe.

The VIAVI OneAdvisor-800 is designed to meet the evolving needs of service providers, field technicians and contractors as they scale 5G infrastructure.  OneAdvisor-800 allows cell site technicians to test fiber, RF, and CPRI/Ethernet from a single instrument, replacing multiple independent tools (OTDR, CAA, Fiber Scope) and significantly reducing the total cost of ownership.

The instrument’s workflow user interface carefully guides technicians through a pre-configured common test process, making sure that technicians complete the job in the same way and to the same specifications.  With OneAdvisor-800, tower hands get built-in guidance, automatic test configuration, pass/fail results, and a single closeout report every time, at every site.

The VIAVI OneAdvisor-800 is the first test tool designed to address the challenges of a modern cell-site technician. By rolling all the key cell-site test capability into one portable tester and combining it with easy-to-use test process and reporting automation, VIAVI has equipped mobile service providers, tower companies, and contractors to meet the work-speed and test coverage requirements for 5G buildouts and LTE maintenance.

PIM Detection over CPRI

The VIAVI RFoCPRI technology on OneAdvisor 800 verifies the CPRI control signals and extracts the RF (IQ) data transmitted between the BBU and RRH, permitting the monitoring of the uplink (mobile devices) spectrum, performing interference analysis of external or internal sources including PIM.

• OneAdvisor 800 performs simultaneous RF Source and RFoCPRI Analysis to accurately identify in real-time the uplink frequency of CPRI multi-carrier containers
• RFoCPRI PIM detection compares in real-time, RF uplink signals of a MIMO system, providing additional characterization of the PIM source
• Inspect in front and behind the impacted antenna for potential external PIM sources and perform a shake, tap, tighten, or cover potential PIM sources and see the instantaneous effect on the PIM signature

Note:

*Including OneAdvisor Mainframe, Display, AC/DC Adapter, Li-Ion Battery, and Soft Carrying case. Recommended for CAA06MB module only
