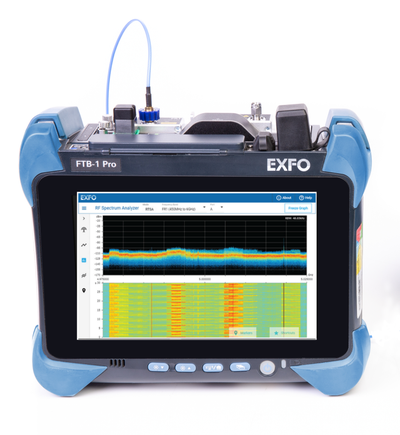

The 5GPro Spectrum Analyzer provides visibility into 4G LTE and 5G RF environments through an easy-to-use, compact and portable solution. Ready to adapt as your network transforms, our flexible, modular and field upgradeable solution lets field techs analyze FR1 (450 MHz - 6 GHz) or FR2 (24.25 GHz – 40 GHz) bands with the same solution.
The 5GPro Spectrum Analyzer also resolves PIM and RF interference. Use RF analysis over CPRI to determine if interference is internal or external. See the application note is the Resources section on this page.
| Key Features |
| Revolutionary RF modules for FR1 and FR2, providing optimal scalability |
| Smart, UX-optimized GUI designed for the way field techs should test |
| Striking the right balance between portability and functionality |
| Bringing intelligence to RF testing with our patent-pending intelligent peak detection and Snap-to-Peak features |
Operators need to support, maintain and test both new and existing RF technologies (e.g., 3G/4G/LTE/5G-NR). Testing solutions that require two tools, one for 4G (mostly FR1 low bands) and a second for 5G (FR1 mid band and FR2), are both costly and inefficient. Meet those challenges head-on with EXFO's 5GPro Spectrum Analyzer:
- Go modular: a single RF spectrum testing solution that supports both FR1 (450 MHz - 6 GHz) and FR2 (24.25 GHz - 40 GHz) bands
- Built for now and later: start with FR1 testing and add FR2 as requirements change
- Test different RF frequencies plus CPRI, eCPRI and Ethernet (up to 100G), timing and sync, and fiber using a modular, future-proof design
- Cloud connectivity lets managers easily add RF spectrum analysis to job workflows
| Specifications |
|
|
| FR1 and FR2 Module |
|
|
| Model Overview |
|
|
| Model | FR1 | FR2 |
| Frequency Range | 450 MHz to 6 GHz | 24.25 GHz to 40 GHz |
| Connector | SMA (female) | 2.92 mm (K-male) |
| Max. Safe Level Input | 30 dBm | 20 dBm |
