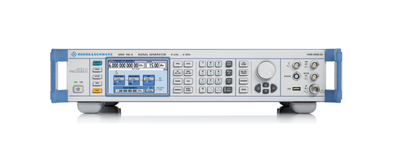

Signal quality, speed and flexibility – these are the criteria by which signal generators are measured today. The R&S SMA100A perfectly meets these criteria, and thus is a premium-class analog generator that sets standards due to its outstanding characteristics.
It combines superior signal quality with very high setting speed. Whether in development, production, service or maintenance, the SMA100A does an excellent job.In the frequency range from 9 kHz to 6 GHz, SMA100A can generate CW signals as well as all common types of analog modulation (AM, FM, fM, pulse modulation). Excellent specifications and a wide range of modulation signals – these are the characteristic features of the SMA100A.In addition, a low-jitter clock synthesizer option supplies differential clock signals of up to 1.5 GHz independently of the RF frequency.
This makes the SMA100A suitable for a variety of applications – from use in phase noise test systems through to tests on mixed-signal ICs.The SMA100A signal generator also offers a modern graphical user interface for fast and intuitive operation. The NRP-Zxx power sensors can be connected to the SMA100A. The user can therefore perform very precise power measurements directly with the signal generator.
Key Features |
Frequency options from 9 kHz to 3 GHz/6 GHz |
Very low SSB phase noise of typ. -141 dBc (at 1 GHz, 20 kHz offset, 1 Hz measurement bandwidth) with option |
Nonharmonics <-96 dBc (f < 750 MHz, carrier offset > 10 kHz) with option |
High output power of up to +18 dBm (+28 dBm in overrange) |
Emulation of legacy instruments |
Electronic attenuator with built-in overvoltage protection over entire frequency range |
Specifications |
|
SMA100A Signal Generator |
|
Frequency |
|
Frequency range | 9 kHz to 3 GHz/ 6 GHz |
Setting time | < 1.2 ms |
Level |
|
Range | –145 dBm to +18 dBm (up to +28 dBm overrange) |
Setting time | < 1 ms |
Setting time in List mode/Fast Hopping modey | < 450 μs |
Spectral Purity (at f = 1 GHz)
|
|
Nonharmonics (carrier offset > 10 kHz, f ≤ 1500 MHz) | < –80 dBc
< –92 dBc with the R&S®SMA-B22 option |
| |
SSB phase noise (20 kHz carrier offset, 1 Hz measurement bandwidth) | < –131 dBc (typ. –134 dBc)
< –137 dBc (typ. –141 dBc) with the R&S®SMA-B22 option |
Wideband noise (carrier offset > 10 MHz, 1 Hz measurement bandwidth, 750 MHz < f ≤ 1500 MHz) | < –153 dBc (–160 dBc, meas.) |
Supported Modulation Modes |
|
AM | standard |
FM/φM | optional (with the R&S®SMA-B20/R&S®SMA-B22 options) |
Pulse | standard |
Chirped pulses | optional (with the R&S®SMA-B20/R&S®SMA-B22 options) |
VOR/ILS | optional (with the R&S®SMA-K25 option) |
DME | optional (with the R&S®SMA-K26 option) |
Clock Synthesis |
|
Frequency range | 100 kHz to 1.5 GHz (with the R&S®SMA-B29 option) |
Interfaces | IEEE 488.2, LAN (10/100BaseT), 2 × USB, 1 × USB slave |
Specifications |
|
|
SMA100A Signal Generator |
|
|
Ordering Information |
|
|
Model | Order Number | Description |
Base Unit |
|
|
SMA100A | 1400.0000.02 | Signal Generator (1) Including power cable, Quick Start Guide and CD-ROM (with operating and service manual) |
Frequency Options |
|
|
SMA-B103 | 1405.0209.02 | 9 kHz to 3 GHz with electronic attenuator |
SMA-B106 | 1405.0809.02 | 9 kHz to 6 GHz with electronic attenuator |
SMA-B103L | 1405.0609.02 | 9 kHz to 3 GHz without attenuator |
SMA-B106L | 1405.1005.02 | 9 kHz to 6 GHz without attenuator |
Note:
(1) The base unit must be ordered together with an R&S® SMA-B103/R&S® SMA-B106 or R&S® SMA-B103L/R&S® SMA-B106L frequency option.
