Keysight Technologies 83020A

Microwave System Amplifier; 2 GHz to 26.5 GHz

Model

83020A

Product Family

RF & Microwave Power

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

RF & Microwave PowerNoise & OtherAmplifiers > 1GHz+28dBm27dB20GHz <= 50GHz1GHz <= 10GHz

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Key Specs

Indicates attributes available at part level. See Configurations tab for part detail.

Attribute	Value
Output Power	+28dBm
Gain	27dB
High Frequency (range)	20GHz <= 50GHz
Low Frequency (range)	1GHz <= 10GHz

Product Overview

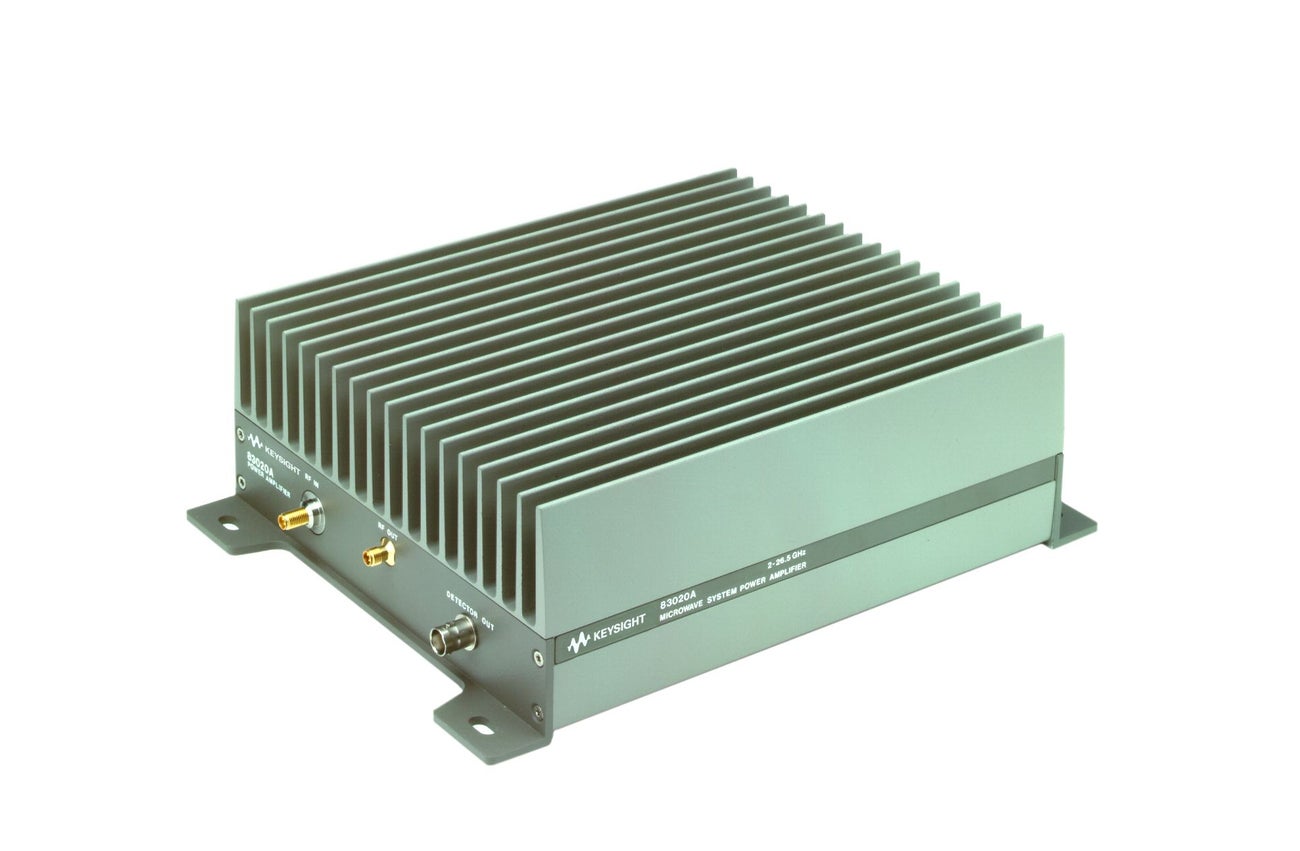

The Keysight 83020A microwave system amplifier is a compact, off-the-shelf amplifier designed for systems designers and integrators.

This amplifier provides power where you need it to recover system losses and to boost available power in RF and microwave ATE systems. The ultrabroad bandwidth from 2 to 26.5 GHz allows the designer to replace several narrow bandwidth amplifiers with a single Keysight amplifier, eliminating the need for crossover networks or multiple bias supplies.

Specifications
83020A Microwave System Amplifier
Feature	Parameter
Superior RF Performance	Gain of more than 30dB (to 20GHz), 27 (to 26.5GHz) P1dB of more than 27dBm (to 20GHz),23dBm (to 26.5GHz) Noise figure of less than 10dB to 20GHz,13 to 26.5GHz (typ)
Connectors Type	Rf connectors: 3.5mm(f) DC Detector output connector: BNC (f)
Bias Option	+15V@3.2A,-15V@50mA Works with 87422A 70 W Power Supply

Specifications
83000A Series Microwave System Amplifiers Overview
Model Overview
Model (dBm)	Frequency (GHz)	Gain (dB)	Pout
83006A	0.01 to 26.5	20	13
83017A	0.5 to 26.5	25	18
83018A	2 to 26.5	27	24
83020A	2 to 26.5	30	30
83050A	2 to 50	21	18
83051A	0.045 to 50	23	12*

Note:

* 10 dbm 45 to 50 GHz

Specifications
Microwave System Amplifier, 10 MHz to 26.5 GHz
Options and Accessories
Model Number	Description
87421A	Power Supply, 12 VDC, 15 VDC, 25 W
87422A	Power Supply, 12 VDC, 15 VDC, 70 W
