AH Systems AK-285R

Antenna Kit; 1kHz to 18GHz

Model

AK-285R

Product Family

RF & Microwave Network Analyzers

Manufacturer

AH Systems

Configured models contain the following attributes:

RF & Microwave Network AnalyzersEMC / EMI / RFI Analyzers10GHz <= 20GHz1kHz <= 100kHz

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Key Specs

Indicates attributes available at part level. See Configurations tab for part detail.

Attribute	Value
High Frequency (range)	10GHz <= 20GHz
Low Frequency (range)	1kHz <= 100kHz

Product Overview

A portable and economical approach to having all the antennas required for most shielding effectiveness testing.

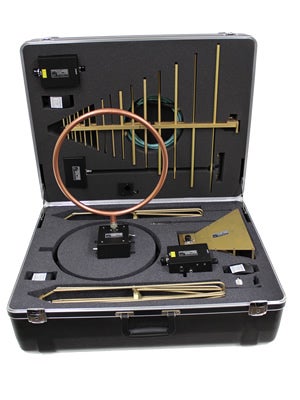

The A.H. Systems AK-285R and AK-285T antenna kits includes all of the required antennas needed to perform shielding effectiveness. Each component has a specific storage compartment in the carrying case therefore, loss and breakage are virtually eliminated. Cables, a tripod with azimuth and elevation head, and a tripod carrying case accompany each antenna kit.

Key Features

1 KHz to 18 GHz

Individually Calibrated

Receive antennas for shielding effectiveness

Rugged Construction

Three Year Warranty

Specifications
AK-285R Antenna Kit
Included Equipment	Frequency Range	Description
TSC-285RT		Transit Storage Case
SAS-510-2	290 MHz - 2000 MHz	Log Periodic Antenna
SAS-544F	20 MHz - 300 MHz	Biconical Antenna
SAS-550-1B	9 KHz - 60 MHz	Active Monopole Antenna
SAS-563B	1 KHz - 60 MHz	Active Loop Antenna
SAS-571	700 MHz - 18 GHz	Double Ridge Guide Horn Antenna
SAC-18G-3	up to 18 GHz	3 Meter Cable, Low Loss, N/N
ADP-202		N(f) to BNC(m) Adapter
ATU-510		Wood Tripod
AEH-510		Azimuth and Elevation Head
TCC-510		Tripod Carrying Case

Specifications
AK-285R Antenna Kit
Dimensions
Antenna Case Size:	28" x 23" x 10"
Weight:	38 lb.'s
Tripod Case Size:	46" x 8" Dia.
Weight:	18.6 lb.'s
