Keysight Technologies 85131E

Flexible Cable; 3.5 mm (Test Port) To 3.5 mm

Model

85131E

Product Family

RF & Microwave Network Analyzers

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

RF & Microwave Network AnalyzersCal Kits20GHz <= 50GHz3.5mm-Female (Plug)DC <= 1kHz

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Key Specs

Indicates attributes available at part level. See Configurations tab for part detail.

Attribute	Value
High Frequency (range)	20GHz <= 50GHz
Connector Type	3.5mm-Female (Plug)
Low Frequency (range)	DC <= 1kHz

Product Overview

Achieve phase stability with this 96.5-cm cable when a DUT is connected, with adapter, directly to the test set port.

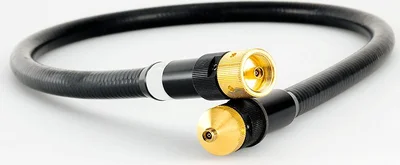

The Keysight 85131E is a 96.5 cm (38 in) long¹ flexible cable with a 3.5 mm female² to PSC-3.5 mm female connector. Cable frequency range is dc to 26.5 GHz with a return loss greater or equal to 16 dB. Insertion loss is 0.35 * sqrt(f) + 0.3, where f is frequency in GHz, for the test port connector and 2.1 dB at maximum frequency for the device connector.

Phase stability of semi-rigid/flexible cables is specified with a 90 degree bend using a 4 to 3 inch radius. Stability¹ of the Keysight 85131E is less than 0.22 dB and phase is 0.16 * f + 0.8, where f is frequency in GHz.

Notes:

¹ Cable length and stability are supplemental characteristics.

² Special rugged female connector is designed specifically for connecting to the network analyzer test port, but does not mate with a standard male connector.
