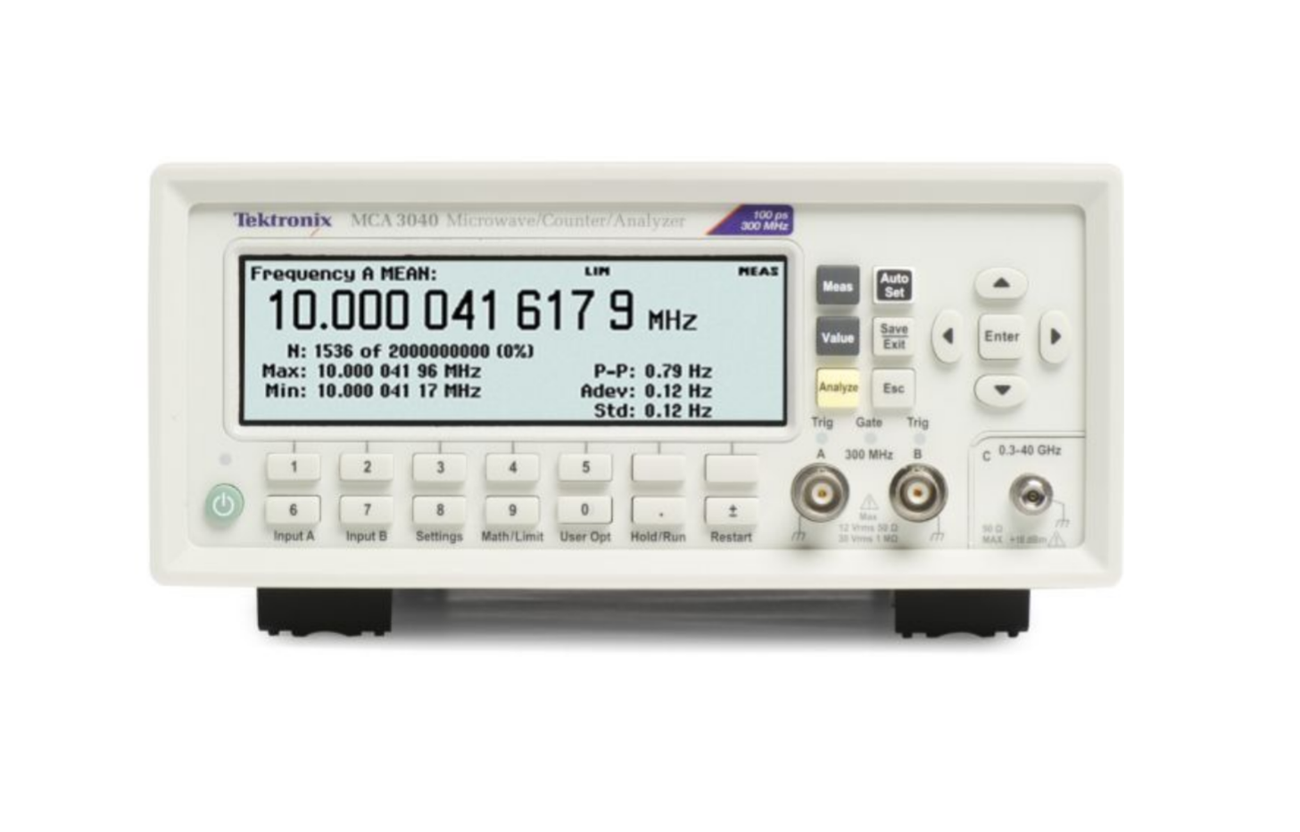

Tektronix MCA3040

Configure Unit

Microwave/Counter Analyzer & Power Meter; A-B: 300 MHz, C: 40 GHz

Model

MCA3040

Product Family

Multimeter

Manufacturer

Tektronix

Configured models contain the following attributes:

MultimeterData AcquisitionCounters & Function GeneratorsFrequency Counters20GHz <= 50GHz

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.

Configure Unit

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Attribute	Value
High Frequency (range)	20GHz <= 50GHz

Product Overview

With industry-leading frequency and time resolution, the MCA Series comes standard with internal memory, a fast data transfer rate of 250k Samples/s to memory, and an integrated power meter. The multi-parameter display shows auxiliary measurements alongside your main measurement to provide you with the results you need at a glance. With the industry’s most comprehensive analysis modes, including measurement statistics, histograms, and trend plots, you have the tools you need to quickly and accurately analyze your signal.

Key Specifications:

27 GHz and 40 GHz models
Microwave analyzer channel with CW or Burst
Two 300 MHz general-purpose channels
100 ps single-shot time resolution
12 Digit/s frequency resolution, 14 digit display
25 ms (auto) or zero (manual) acquisition Time
3 mV voltage resolution
Optional 1.5×10–8 ultra high-stability oven time base
–35 dBm to +10 dBm power range
