Quick quote: AstroNova TMX
AstroNova TMX
High Speed Data Acquisition Recorder; with 3 Modules Slots
Model
TMXProduct Family
MultimeterManufacturer
AstroNovaConfigured models contain the following attributes:
MultimeterData AcquisitionCounters & Function GeneratorsData AcquistionConfigurations
Key Specs
Product Overview
Resources
Let us help you with your exact configuration
Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Please refer to the Resources section for Datasheets or see the Product Overview.
If you would like to know more, please get in touch and one of our team will be happy to help.
Product Overview

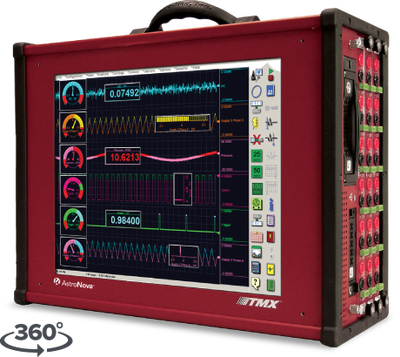

The TMX® is an all-in-one, out of the box DAQ solution designed to acquire, visualize and analyze data. Tested to MIL-STD-810F standards, it will withstand the rigors of field testing, production environments and lab work. With its user-friendly software, the TMX has proven itself year after year, becoming a trusted and reliable solution for critical industry-leading applications around the world.
Rugged and easy-to-use, the TMX all-in-one data acquisition system is a complete solution with everything you need to acquire, visualize, and analyze data quickly. All TMX models offer a modular and scalable architecture allowing systems to be set for your specific application. The operation of the TMX is quick and effortless with its intuitive user interface, 17-inch multi-touch display and variety of input modules.
The TMX and its user-friendly software have proven itself year after year, becoming a trusted and reliable solution for critical applications around the world. It is ideal for a variety of uses including maintenance and troubleshooting, R&D, verification and validation. Tested to MIL-STD-810F standards, it will withstand the rigors of field testing, production environments and lab work.
| Key Features |
| 800 kS/s per channel max sample rate |
| 50 MS/s with optional scope card |
| Up to 96 channels |
| Audio and video inputs synchronized with analog and digital data |
| GPS, IRIG, NTP synchronization |
| Automate common tasks with Python or LabVIEW |
| Available 18-ch TMX with 3 universal isolated voltage modules (TMX-18) and rack mount version (TMX-R) |
| Enhanced security via Windows 10 and hard drive |
| Benefits |
Advanced triggering capabilities to start and stop recording based on changes in your input signals. Use AND/OR operators to ensure that you trigger only on events needed provide networked recording capability |
Embedded scope mode with intelligent triggering allows for long term trending and simultaneous capture of high-speed events. The two-channel scope card also extends the sampling rate to 50 MS/s for both channels |
| Up to four independent sampling rates per channel to optimize file sizes by assigning higher sample rates to critical signals |
| Circular data buffer allows you to set and record large amounts of pre-trigger data |
| Advanced filtering options such as low pass, high pass, RMS, bandpass, and bandstop filtering |
| Specifications | |
TMX High Speed Data Acquisition Recorder | |
| Feature | Parameter |
| Max. Number of Modules | TMX: 3 Slots TMX with TMX-E: 6 Slots TMX-R: 6 Slots TMX-R with TMX-E: 9 Slots |
| Event Inputs (TTL) | 16 |
| Type | Active matrix color LCD (TFT) |
| Viewing Area | 13.3” H x 10.6” W Diagonal 17" (43.2 cm) |
| Resolution | 1280px x 1024px |
| Touch | Full screen, resistive |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non condensing |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Shock | MIL-STD-810F Method 516.5, Procedure I |
| Vibration | MIL-STD-810F Method 514.5, Procedure I |
| Safety | IEC 61010-1:2010 (3rd edition) IEC 61010-2-030:2010 EMC: IEC 61326-1 Ed. 2.0 (2012) |
| Enclosure | Aluminum with armored end caps |
| Dimensions | 14.5” H x 19” W x 7.5” D (36.8 cm x 48.3 cm x 19.1 cm) without handle |
| Weight | 37 lbs. (16.78 kg) for TMX including 3 modules |
| Ethernet | Gigabit Ethernet (10/100/1000 Base-T) RJ-45 connector |
| VGA | For displaying data on an external monitor |
| USB 3.0 | For external peripherals and file export 4 ports per unit |
| Expansion Port | For connection of optional TMX-E |
| Input Voltage Range | 102 to 264 VAC or 24 VDC at 11A |
| Frequency Range | 47 Hz to 63 Hz |
| Power Consumption | 300W |
| Specifications | ||
TMX High Speed Data Acquisition Recorder | ||
| Model Overview | ||
| Model | Description | Part Number |
| Chassis | ||
| TMX | TMX Data Acquisition System (Includes 3 module slots) | 42880030 |
| TMX-R | Rack-mount TMX Data Acquisition System (includes 6 module slots, fits standard 19” rack) | 42880430 |
| TMX-E | Expansion chassis (provides 3 additional module slots, requires TMX unit for operation) | 42885000 |
| Complete Systems | ||
| TMX-18 | 18-Channel TMX Data Acquisition System (fully equipped with 3 UNIV-6 input modules) | 42880530 |
| Chart Printers | ||
| Real-Chart RC-300R | Real-Chart Network Printer (Rack Mount) | 407775300 |
| Real-Chart RC-300B | Real-Chart Network Printer in Benchtop Enclosure | 407775310 |
| Input Modules | ||
| UNIV-6 | 6-Channel Universal Module Voltage and DC Bridge | 32850000 |
| IHVM-6 | 6-Channel High Voltage Module | 32850030 |
| IHVM-6B | 6-Channel High Voltage Module, 10 MΩ input impedance | 32850035 |
| IBRM-6 | 6-Channel Isolated DC Bridge Module with internal half-bridge completion | 32850040 |
| IEPE-6 | 6-Channel Isolated Piezoelectric Sensor Module (for ICP© type sensors) | 32850050 |
| DIOC-16 | 16-Channel Digital I/O, Analog Output, Counter and Relay Module | 32850060 |
| NIDV-16 | 16-Channel Non-isolated Differential Voltage Module (accepts up to 35 Vrms) | 32850020 |
| ITCU-12 | 12-Channel Isolated Thermocouple Module with Cold Junction Compensation in each input | 32850010 |
| IRTD-12 | 12-Channel RTD Module supports direct connections of Pt 100 RTD | 32850070 |
| Options | ||
| DDX-SSD400 | Solid-state drive option, 400GB for both system and capture drives | 41284004 |
| DDX-SSD800 | Solid-state drive option, 800GB for both system and capture drives | 41284008 |
| TMX AstroDock® | PC Docking Station – use with TMX removable drives for data transfer | 42852500 |
| Advanced Options | ||
| TMX-SC | TMX 50 MS/s 2-ch scope option | 27300200 |
| TMX-IR | IRIG Decoding Option supports IRIG A, B, E, G, NASA 36 time codes with GPS location and timing | 27300000 |
| TMX-TTLIRB | IRIG B TTL, provides IRIG B TTL time synchronization | 14104110 |
| TMX-CC | Compressed Capture for long-term recording with file size conservation while maintaining bandwidth | 14104300 |
| TMX-CB | CAN Bus interface to view and record CAN Bus data and other analog signals | 27300100 |
| AstroDock | PC Docking Station - use with TMX removable drives for data transfer. (drives and personal computer not included) | 42832500 |
| TMX-VA | Video/Audio Acquisition Upgrade provides 30 fps video and 44.1 kHz audio (camera not included) | 14104100 |
| TMX-M | Microphone/Headset for TMX-VA Audio Acquisition (requires TMX-VA option) | 26514001 |
| Software | ||
| TMX-OS | TMX Offline Software (1 user) | 14004600 |
| TMX-OSSL | TMX Offline Software with Site License (5 users) | 14004601 |
| FDAS | FlexPro 9 Data Analysis Software (Standard Edition) | 14180100 |
| FDAS-PRO | FlexPro 9 Data Analysis Software (Professional Edition) | 14180200 |
| Cases | ||
| HC-TMX | Hard Transport Case for TMX | 14710002 |
| SC-TMX | Soft Carry Case for TMX | 41047000 |
| Additional Drives | ||
| TMX-SYS | Additional System Drive Enclosure (includes TMX Windows® 10 System in a removable cartridge) | 26801570 |
| TMX-DATA | Additional 1 TByte Data Capture Drive Enclosure (includes TMX data capture drive in a removable cartridge) | 26801350 |
