Keithley’s Series 2600B System SMU instruments are the industry standard current-voltage source and measure solution for highly automated production test applications. Both dual- and single-channel models tightly integrate a precision power supply, true current source, DMM, and electronic load with pulse generating capabilities. Plus, TSP® technology runs complete test programs for automated system applications, and TSP-Link® technology enables daisy-chaining up to 64 channels for high volume parallel test.
Key Features |
Tightly integrated, 4-quadrant voltage/current source and measure instruments offer best in class performance with 6½-digit resolution |
Family of models offer industry’s widest dynamic range: 10 A pulse to 0.1 fA and 200 V to 100 nV |
Built-in web browser based software enables remote control through any browser, on any computer, from anywhere in the world |
Compatibility with the Keithley IVy mobile app enables true plug & play I/V characterization and test through any Android device |
TSP (Test Script Processing) technology embeds complete test programs inside the instrument for bestin-class system-level throughput |
TSP-Link expansion technology for multi-channel parallel test without a mainframe |
Software emulation for Keithley’s 2400 SourceMeter SMU Instrument |
USB 2.0, LXI-C, GPIB, RS-232, and digital I/O interfaces |
Free software drivers and development/debug tools |
Optional ACS-Basic semiconductor component characterization software |
Specification |
|
|
|
|
|
2600B Series |
|
|
|
|
|
Model Overview |
|
|
|
|
|
Model | Channels | Max Current Source/Measure Range | Max Voltage Source/Measure Range | Measurement Resolution
(Current / Voltage)
| Power |
2601B | 1 | 10A | 40V | 100fA / 100nV | 200 W |
2611B | 1 | 10A | 200V | 100fA / 100nV | 200 W |
2604B | 2 | 10A | 40V | 100fA / 100nV | 200 W |
2614B | 2 | 10A | 200V | 100fA / 100nV | 200 W |
2602B | 2 | 10A | 40V | 100fA / 100nV | 200 W |
2612B | 2 | 10A | 200V | 100fA / 100nV | 200 W |
2635B | 1 | 10A | 200V | 0.1fA / 100nV | 200 W |
2634B | 2 | 10A | 200V | 1fA / 100nV | 200 W |
2636B | 2 | 10A | 200V | 0.1fA / 100nV | 200 W |
Specifications |
|
2600B Series
System SourceMeter SMU Instruments
|
|
Model Overview |
|
Model Number | Description |
2601B | Single-channel System SourceMeter SMU Instrument (3 A DC, 10 A Pulse) |

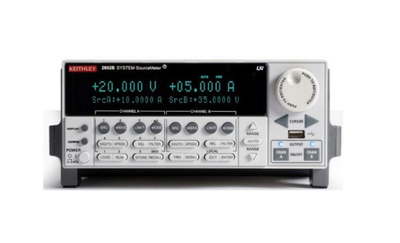

2602B | Dual-channel System SourceMeter SMU Instrument (3 A DC, 10 A Pulse) |
2604B | Dual-channel System SourceMeter SMU Instrument (3 A DC, 10 A Pulse, Benchtop Version) |
2611B | Single-channel System SourceMeter SMU Instrument (200 V, 10 A Pulse) |
2612B | Dual-channel System SourceMeter SMU Instrument (200 V, 10 A Pulse) |
2614B | Dual-channel System SourceMeter SMU Instrument (200 V, 10 A Pulse, Benchtop Version) |
2634B | Dual-channel System SourceMeter SMU Instrument (1 fA, 10 A Pulse, Benchtop Version) |
2635B | Single-channel System SourceMeter SMU Instrument (0.1 fA, 10 A Pulse) |
2636B | Dual-channel System SourceMeter SMU Instrument (0.1 fA, 10 A Pulse) |
