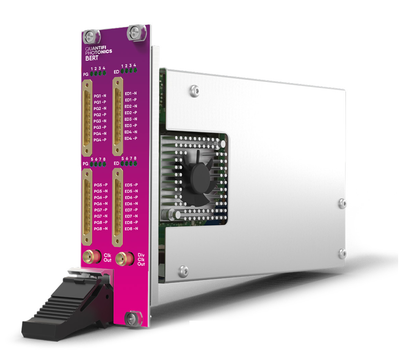

Quantifi Photonics BERT-1102-8-PXIE

Each error detect channel has its own independent, simultaneous, clock-and-data recovery (CDR);

this makes BERT testing a versatile and easy-to-use instrument.

There is no need for additional clock recovery hardware.

Save time and reduce complexity with the easy-to-use cohesionUI GUI.

Control all channels and functions from its single panel interface

(including all other Quantifi Photonics modules in the system from the same intuitive interface).

An integrated clock synthesizer is provided internally as part of the PPG for additional convenience and hassle-free operation.

No external clock generator is required.

With up to 8-channels per two-slot PXIe module, fit up to 64 synchronized 29 GBaud channels

(with either NRZ or PAM4 per channel) per single PXIe mainframe.

1100 Series

NRZ AND PAM4 BERT/PPG

130 x 40 x 215 mm

5.1 x 1.6 x 8.5 inches

53 x 120 x 202 mm

2.1 x 4.7 x 8.0 inches

~ 1 kg

~ 2.2 lbs

~ 1.1 kg

~ 2.4 lbs

5°C to 45°C

41°F to 113°F

5°C to 45°C

41°F to 113°F

-40°C to 70°C

-40°F to 158°F

-40°C to 70°C

-40°F to 158°F

1100 Series

NRZ AND PAM4 BERT/PPG

PXIe

Modular

Our expanding range of PXIe optical test solutions are used by customers in mixed-signal test and measurement systems, reducing complexity, lowering the cost of test and accelerating time to market.

Features:

Multi vendor, open standard with over 2500 PXI modules available.

Advanced timing and synchronization capabilities across instruments.

Low latency, high performance processing and fast data throughput.

Design and build scalable, high channel count systems.

Small footprint and lower power consumption

MATRIQ

Compact and Portable

The MATRIQ series provides the same high-performance test capabilities of our PXIe modules in an compact benchtop design.

MATRIQ instruments are simple to setup and easy to operate, making them the perfect choice for your optical lab or test bench.

Features:

Same performance and control as our PXIe modules.

Plug and play with USB or Ethernet connectivity.

Control via the web-based GUI, COHESIONUI or SCPI commands.

Compact and portable design saves benchtop space

1100 Series

NRZ AND PAM4 BERT/PPG

1 to 29 GBaud, NRZ and PAM4

(includes necessary BERT-9007 male breakout cables)
