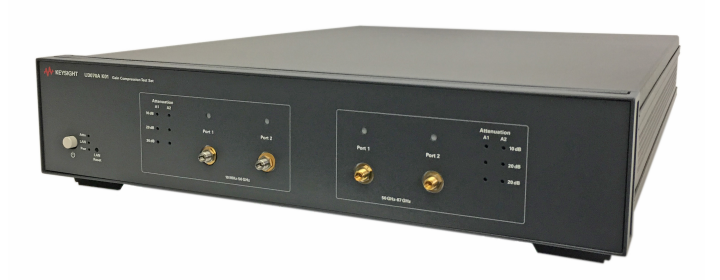

Keysight Technologies U3070AK01

Gain Compression Test Set; 10MHz to 50GHz

Model

U3070AK01

Product Family

Calibration

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

CalibrationCalibration Standards- RFM

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

The Keysight U3070AK01 Gain Compression Test Set is designed for the PNA-X network analyzer as a test accessory to verify the gain compression performance of the network analyzer receiver. Other Keysight network analyzer product families have also incorporated the Test Set in their production and service processes.

The U3070AK01 Test Set can only be controlled via the rear panel GPIB or LAN interfaces

Specifications
Gain Compression Test Set; 10MHz to 50GHz
U3070AK01-050 (10 MHz to 50 GHz)	Frequency	Nominal (dB)
Match	10 MHz to 200 MHz	0
	> 200 MHz to 26.5 GHz	-6
	> 26.5 GHz to 50 GHz	-6
Rev Gain	10 MHz to 50 GHz	-40
Attn Error	10 MHz to 50 GHz	±2
Fwd Gain	10 MHz to 26.5 GHz	18
	> 26.5 GHz to 50 GHz	15
