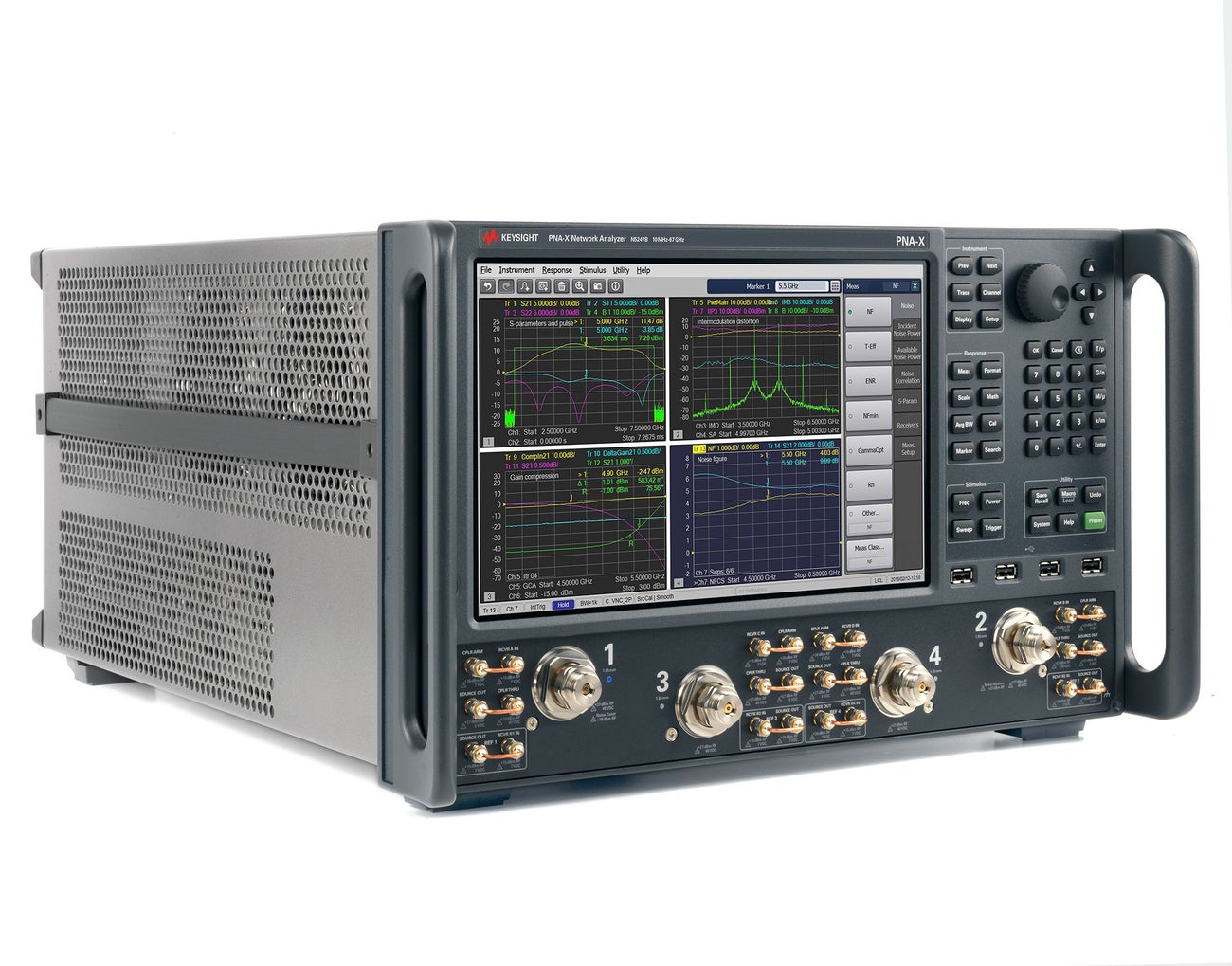

Keysight Technologies N5247B

PNA-X Microwave Network Analyzer; 900 Hz / 10 MHz to 67 GHz

Model

N5247B

Product Family

RF & Microwave Network Analyzers

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

RF & Microwave Network AnalyzersNetwork Analyzers >=20GHz50GHz <= 85GHz1MHz <= 10MHzBenchtop

Configurations

Key Specs

Product Overview

Resources

Choose your configuration

Show:

Search & combine Options e.g 'C4000; M400'

Available Options for Keysight Technologies N5247B

Option	Description
DDS	DDS synthesizer
N52XxB-BBB	Installed Software - B
N5247B-1CM	Rack mount kit for installation without handles
N5247B-1CP	Rack mount kit for installation with handles
N5247B-007	Automatic Fixture Removal
N5247B-008	Pulsed-RF Measurements
N5247B-010	Time-domain measurements
N5247B-011	Enhanced Time Domain with TDR, fixed perpetual license
N5247B-015	Dynamic uncertainty for S-Parameter Measurements
N5247B-020	Add IF inputs
N5247B-021	Add pulse modulator to internal first source
N5247B-022	Add pulse modulator to internal 2nd source
N5247B-028	Noise figure measurements using standard receivers
N5247B-029	Add noise receiver to 50 GHz
N5247B-083	Vector and scalar calibrated converter measurements
N5247B-084	Embedded LO measurements
N5247B-086	Gain compression application
N5247B-087	Intermodulation distortion measurements
N5247B-088	Source phase control
N5247B-089	Differential and I/Q devices application
N5247B-110	Active Hot Parameters, fixed perpetual license
N5247B-118	Fast CW mode
N5247B-219	2-port, configurable test set, source attenuators, receiver attenuators, bias tees
N5247B-224	2-port, configurable test set, source attenuators, receiver attenuators, bias tees, second source, combiner, mechanical
N5247B-401	4-port, configurable test set, second source
N5247B-423	4-port, configurable test set, second source, source attenuators, receiver attenuators, bias tees, combiner, mechanical
N5247B-425	4 port configurable test set, second source, attenuators, low frequency extension, combiner and mechanical switches
N5247B-460	Integrated true-mode stimulus application
N5247B-510	Nonlinear Component Characterization
N5247B-514	Nonlinear X-Parameters
N5247B-518	Nonlinear pulse envelope domain
N5247B-520	Arbitrary load impedance X-parameters
N5247B-521	Arbitrary load-control X-parameters
N5247B-551	N-port calibrated measurements
N5247B-701	Nameplate, standard
N5247B-702	Nameplate, LFE
N5247B-845	Base box 4 port + 423 + 029
N5247B-847	Base box 4 port + 425 + 029
N5247B-848	Internal use only - Base box 4-port with assembly 423 with E29
N5247B-898	Built-in performance test software for standards compliant calibration, perpetual license
N5247B-E29	Add noise receiver to 70 GHz
N5247B-GSA	Critical Component for GSA FMF TAA orders
N5247B-Q07	Spectrum analysis, up to 67 GHz
