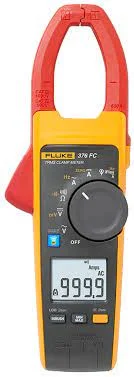

Fluke 376 FC

FC True-RMS Clamp Meter; with iFlex, 1000A AC/DC

Model

376 FC

Product Family

Multimeter

Manufacturer

Fluke

Configured models contain the following attributes:

MultimeterData AcquisitionCounters & Function GeneratorsDigital Multimeters

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

The Fluke 376 FC True-rms Clamp Meter with iFlex is the most advanced troubleshooting tool for industrial and commercial electricians. The 376 is part of the Fluke Connect family of wireless test tools that enable you to log, trend and monitor measurements while remaining safely away from the arc flash zone through Bluetooth connectivity.

The 376 FC clamp meter uses an integrated low-pass filter for accurate measurements of non-linear signals, such as adjustable speed drives, electronic ballasts and other non-linear loads. The clamp also uses proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it.

The 376 FC clamp carries a CAT III 1000 V, CAT IV 600 V safety rating, designed to offer you the highest possible protection in a test tool.

The included iFlex flexible current probe provides easier access to large conductors in tight spaces. The flexible probe:

Expands the measurement range to 2500 A AC
Allows frequency measurement to 500 Hz with body jaw and iFlex

Key Features

Voltage to 1000 V AC or DC

Resistance to 60 kΩ with continuity detection

Min, max, average, and inrush recording to capture variations automatically

500 mV DC measurement range to interface with other accessories

1000 μF capacitance measurement

Specifications
Fluke 376 FC True-RMS Clamp Meter with iFlex
Features	Parameters
AC Current via Jaw
Range	999.9 A
Resolution	0.1 A
Accuracy	2% ±5 digits (10 Hz to 100 Hz) 2.5% ±5 digits (100-500 Hz)
Crest Factor (50 Hz/60 Hz)	3 @ 500 A 2.5 @ 600 A Add 2% for C.F. >2
AC Current via Flexible Current Probe
Range	2500 A
Resolution	0.1 A (≤ 600 A) 1 A (≤ 2500 A)
Accuracy	3% ±5 digits (5 – 500 Hz)
Crest Factor (50/60Hz)	3.0 at 1100 A 2.5 at 1400 A 1.42 at 2500 A Add 2% for C.F. > 2
DC Current
Range	999.9 A
Resolution	0.1 A
Accuracy	2% ±5 digits
AC Voltage
Range	1000 V
Resolution	0.1 V (≤600.0 V) 1 V (≤1000 V)
Accuracy	1% ±5 digits (20 Hz to 500 Hz)
DC Voltage
Range	1000 V
Resolution	0.1 V (≤600.0 V) 1 V (≤1000 V)
Accuracy	1% ±5 digits
mV dc
Range	500.0 mV
Resolution	0.1 mV
Accuracy	1% ±5 digits
Frequency via Jaw
Range	5.0 Hz to 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5% ±5 digits
Trigger level	5 Hz to 10 Hz, ≥10 A 10 Hz to 100 Hz, ≥5 A 100 Hz to 500 Hz, ≥10 A
Frequency via Flexible Current Probe
Range	5.0 Hz to 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5% ±5 digits
Trigger level	5 Hz to 20 Hz, ≥25 A 20 Hz to 100 Hz, ≥20 A 100 Hz to 500 Hz, ≥25 A
Resistance
Range	60 kΩ
Resolution	0.1 Ω (≤600 Ω) 1 Ω (≤6000 Ω) 10 Ω (≤60 kΩ)
Accuracy	1% ±5 digits
Capacitance
Range	1000 μF
Resolution	0.1 μF (≤ 100 μF) 1 μ F (≤ 1000 μF)
Accuracy	1% ±4 digits
Mechanical
Maximum Voltage between any Terminal and Earth Ground	1000 V
Batteries	2 AA NEDA 15A IEC LR6
Operating Temperature	-10 °C to +50 °C
Storage Temperature	-40 °C to +60 °C
Operating Humidity (non-condensing (< 10°C))	≤90% RH (at 10 °C to 30 °C) ≤75% RH (at 30 °C to 40 °C) ≤45% RH (at 40 °C to 50 °C)
Operating Altitude	2000 m
Storage Altitude	12,000 m
Size (L x W x H)	249 x 85 x 45 mm
Weight	395 g
Jaw Opening	34 mm
Flexible Current Probe Diameter	7.5 mm
Flexible Current Probe Cable Length (head to electronics connector)	1.8 m
Safety	IEC 61010-1, Pollution Degree 2 IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V IEC 61010-2-033:CAT III 1000 V / CAT IV 600 V
IP Rating	IEC 60529: IP30, non-operating
Radio Frequency Certification FCC ID	T68-FBLE IC:6627A-FBLE
Electromagnetic Compatibility (EMC)
International	IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purpose. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object.
Korea (KCC)	Class A Equipment (Industrial Broadcasting & Communication Equipment) Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
USA (FCC)	47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Temperature Coefficients	Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 °C

Specifications
Fluke 376 FC True-RMS Clamp Meter with iFlex
Model Overview
Model	Description
Fluke 376 FC	True-RMS Clamp Meter with iFlex Included Accessories: 18-inch iFlex® Flexible Current Probe TPAK magnetic hanging strap TL75 Test Leads Two AA batteries (Installed) Soft carrying case Coated instruction card Safety information sheet
