ConcealFab 900633-02

Filter Kit; Two-Port PIM Testing, with Accessories, 700 MHz

Model

900633-02

Product Family

Cable

Manufacturer

ConcealFab

Configured models contain the following attributes:

CableAntenna & PIM AnalyzersCable & Antenna Analyzer Accys

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

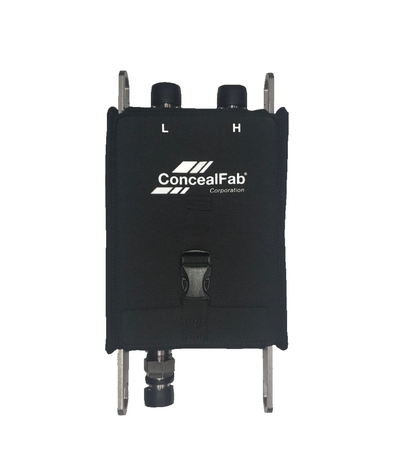

ConcealFab’s 700 MHz filter kits enable contractors to perform 2-port PIM tests on AT&T sites using 1-port PIM test equipment from Kaelus or Anritsu. Each kit includes a low PIM filter to split the F1 and F2 test tones as well as accessories to support testing.

Specifications

Filter Kit;

Two-port PIM Testing, 700 MHz, with Accessories

Kit Content

Filter

Soft case for filter

Transit case for kit

3x 7-16 DIN male - 7-16 DIN male test cables

2x Low PIM load

2x 7-16 DIN male – 7-16 DIN female adapters, (connector savers)

7-16 DIN female - 7-16 DIN female adapter

7-16 DIN female – 4.3-10 female adapter

7-16 DIN female – 4.3-10 male adapter

Adapter case

Cleaning kit + case

2x Lanyards

External PIM source

Specifications
Filter Kit
Model Overview
Model / Part Number	Description
900633-01	Filter Kit, Two-port PIM Testing, 700 MHz
900633-02	Filter Kit, Two-port PIM Testing, 700 MHz, with Accessories
