The C Series Voltage Output Module helps you update analog output models that feature overvoltage protection, short-circuit protection, low crosstalk, fast slew rate, high relative accuracy, and NIST-traceable calibration. This module includes up to 16 channels. Some models include a channel-to-earth ground double isolation barrier for safety and noise immunity as well as improved signal quality, and some higher density models conserve chassis space, which leaves room for other measurement types.
The C Series Voltage Output Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.

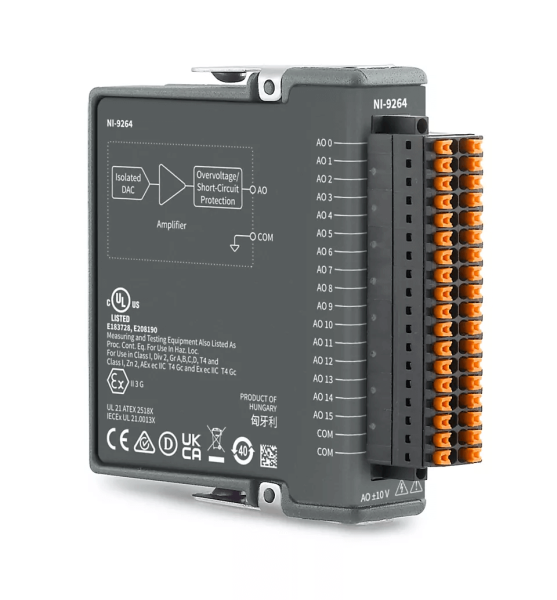

The NI-9264 is a C Series module for NI CompactDAQ and CompactRIO systems that accommodates higher-channel-count systems in either chassis type. Higher-density modules conserve chassis space and leave room for other measurement types. Each channel can update at up to 25 kS/s because each channel has its own digital-to-analog converter.
The spring-terminal version of the NI-9264 uses a 36-position connector for the 16 channels of output, each of which has a ground connection. The DSUB version of the NI-9264 module was designed to accommodate standard 37-pin D-Sub connectors.
Specifications | ||||||||||
C-Series Voltage Output Module | ||||||||||
Model Overview | ||||||||||
Model (Part Number) | Analog Output Channels | Analog Output Voltage Range | Maximum Update Rate | Maximum Current Drive | Analog Output Resolution | Front Connection Type | Analog Output Isolation | Conformal Coated | Enclosed | Supported Hardware Platform |
NI-9260 (783467-01) | 2 | 0 Vrms to 3 Vrms | 51.2 kS/s/ch | 7 mA | 24 bits | Mini-XLR (qty 2) | None | No | Yes | CompactDAQ CompactRIO |
NI-9260 (783466-01) | 2 | 0 Vrms to 3 Vrms | 51.2 kS/s/ch | 7 mA | 24 bits | BNC (qty 2) | None | No | Yes | CompactDAQ CompactRIO |
NI-9262 (785503-01) | 6 | -10 V to 10 V | 1 MS/s/ch | 2 mA | 16 bits | D-SUB | 60 VDC Ch-Earth Ground Isolation | No | Yes | CompactDAQ CompactRIO |
NI-9262 (785503-02) | 6 | -10 V to 10 V | 1 MS/s/ch | 2 mA | 16 bits | D-SUB | 60 VDC Ch-Earth Ground Isolation | Yes | Yes | CompactDAQ CompactRIO |
NI-9263 (783740-01) | 4 | -10 V to 10 V | 100 kS/s/ch | 1 mA | 16 bits | Spring Terminal | 250 Vrms Ch-Earth Ground Isolation | No | Yes | CompactDAQ CompactRIO |
NI-9263 (779012-01) | 4 | -10 V to 10 V | 100 kS/s/ch | 1 mA | 16 bits | Screw Terminal | 250 Vrms Ch-Earth Ground Isolation | No | Yes | CompactDAQ CompactRIO |
NI-9264 (780927-01) | 16 | -10 V to 10 V | 25 kS/s/ch | 4 mA | 16 bits | D-SUB | 60 VDC Ch-Earth Ground Isolation | No | Yes | CompactDAQ CompactRIO |
NI-9264 (785190-01) | 16 | -10 V to 10 V | 25 kS/s/ch | 4 mA | 16 bits | Spring Terminal | 250 Vrms Bank Isolation | No | Yes | CompactDAQ CompactRIO |
NI-9264 (780927-02) | 16 | -10 V to 10 V | 25 kS/s/ch | 4 mA | 16 bits | D-SUB | 60 VDC Ch-Earth Ground Isolation | Yes | Yes | CompactDAQ CompactRIO |
NI-9264 (785190-02) | 16 | -10 V to 10 V | 25 kS/s/ch | 4 mA | 16 bits | Spring Terminal | 250 Vrms Bank Isolation | Yes | Yes | CompactDAQ CompactRIO |
NI-9269 (781098-01) | 4 | -10 V to 10 V -40 V to 40 V | 100 kS/s/ch | 10 mA | 16 bits | Screw Terminal (qty 4) | 250 Vrms Ch-Ch Isolation | No | Yes | CompactDAQ CompactRIO |
NI-9269 (781098-02) | 4 | -10 V to 10 V -40 V to 40 V | 100 kS/s/ch | 10 mA | 16 bits | Screw Terminal (qty 4) | 250 Vrms Ch-Ch Isolation | Yes | Yes | CompactDAQ CompactRIO |
sbRIO-9263 (780876-01) | 4 | -10 V to 10 V | 100 kS/s/ch | 1 mA | 16 bits | Screw Terminal | 250 Vrms Ch-Earth Ground Isolation | No | No | CompactRIO |
sbRIO-9264 (781119-01) | 16 | -10 V to 10 V | 25 kS/s/ch | 4 mA | 16 bits | D-SUB | 60 VDC Ch-Earth Ground Isolation | No | No | CompactRIO |
sbRIO-9269 (781120-01) | 4 | -10 V to 10 V -40 V to 40 V | 100 kS/s/ch | 10 mA | 16 bits | Screw Terminal (qty 4) | 250 Vrms Ch-Ch Isolation | No | No | CompactRIO |
