The ideal construction OTDR for everyday field testing in any access network. With an iOLM application for both singlemode and multimode testing, it’s the most automated and intelligent troubleshooting tool for FTTA, LAN and data centers.

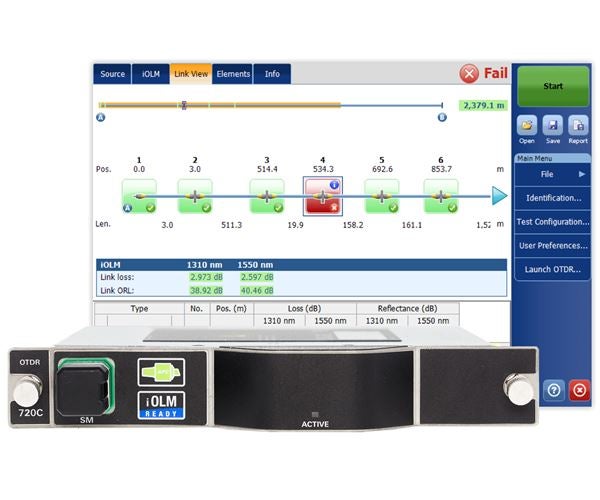

The FTBx-720C is an OTDR that is best suited for most typical short and access networks. It can perform both singlemode and multimode testing.
The FTBx-720C is designed for fronthaul/backhaul applications (FTTA, DAS, RRH, small cells), data-center tier-2 troubleshooting, enterprise and access networks, PON characterization and more. The FTBx-720C test module is hosted in our compact modular platforms that can also be equipped with other testing capabilities such as Ethernet, CPRI or copper testing to provide a complete test solution for FTTA contractors.
| Key Features |
| Dynamic range of up to 36 dB in singlemode |
| Event dead zone as low as 0.7 m and attenuation dead zone of 3 m |
| Live fiber testing at 1625 nm |
| Combined singlemode/multimode wavelengths |
| Encircled Flux (EF) ready: use with external launch mode conditioner for EF-compliant multimode results |
| iOLM-ready: one-touch multiple acquisitions, with clear go/no-go results presented in a straightforward visual format |
| Specifications |
|
|
|
| Model | Description |
| FTBx-720C | OTDR |
| Optical Configuration (FTBx-720C-XX) |
|
| FTBx-720C-SM1 | SM OTDR, 1310/1550 nm |
| FTBx-720C-SM2 | SM OTDR, 1310/1550 nm and 1625 nm live (a) |
| FTBx-720C-Q1 | MM OTDR, 850/1300 nm. QUAD-ready (a) |
| FTBx-720C-Q1-QUAD | QUAD OTDR, 850/1300 nm and 1310/1550 nm |
| Base Software (FTBx-720C-XX-XX) |
|
| OTDR | Enables OTDR application only |
| iOLM | Enables iOLM application only |
| Oi | Enables OTDR and iOLM applications |
| Singlemode and Multimode Connector (c) (FTBx-720C-XX-XX-XX) |
|
| EA-EUI-28 | APC/DIN 47256 |
| EA-EUI-89 | APC/FC narrow key |
| EA-EUI-91 | APC/SC |
| EA-EUI-95 | APC/E-2000 |
| EA-EUI-98 | APC/LC |
| EI-EUI-28 | UPC/DIN 47256 |
| EI-EUI-89 | UPC/FC narrow key |
| EI-EUI-90 | UPC/ST |
| EI-EUI-91 | UPC/SC |
| EI-EUI-95 | UPC/E-2000 |
| EI-EUI-98 | UPC/LC |
| iOLM software option (b) (FTBx-720C-XX-XX-XX-XX) |
|
| 00 | iOLM Standard |
| iADV | iOLM Advanced |
| iPRO | iOLM Pro |
| iLOOP | iOLM loopback mode |
| iCERT | iOLM tier-2 certification |
