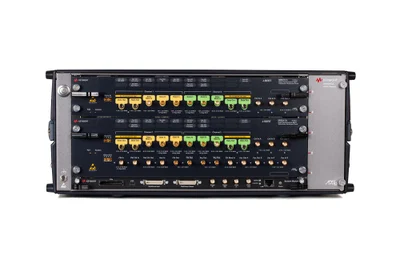

Keysight Technologies M8020A

Available to Buy Online

View Configurations

J-BERT High-Performance BERT

Model

M8020A

Product Family

Digital Design

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

Digital DesignBER Testing 2G-12GB/s

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

The high-performance Keysight J-BERT M8020A enables fast, accurate receiver characterization of single- and multi-lane devices running up to 16 or 32 Gb/s.

With today’s highest level of integration, the M8020A streamlines your test setup. In addition, automated in situ calibration of signal conditions ensures accurate and repeatable measurements. And, through interactive link training, it can behave like your DUT’s link partner. All in all, the J-BERT M8020A will accelerate insight into your design.

Key Features

Data rates up to 8.5/ 16 Gb/s for pattern generator and error detector. Expandable to 32 Gb/s with M8062A 32 Gb/s BERT Front-End

Integrated and calibrated jitter injection: RJ, PJ1, PJ2, SJ, BUJ, sinusoidal interference(common-mode and differential-mode), SSC (triangular and arbitrary, residual)

8- tap de-emphasis (positive and negative) up to 20 dB

Integrated and adjustable ISI for loss emulation

Interactive link training for SAS-3, USB 3.0/3.1 and PCI Express supporting 8 GT/s and 16 GT/s

Interactive TxEQ training for IEEE 10GBASE-KR, 25GBASE-KR and 100GBASE-KR4

Built-in clock data recovery and equalization

System integration with M8070A software for M8000 BER series. Seamless operation with BERT/Scope and AWGs

Benefits

Target Applications

R&D and test engineers who characterize, verify compliance of chips, devices, boards and systems with serial I/O ports up to 16 Gb/s and 32 Gb/s.

The M8020A can be used to test popular serial bus standards, such as:

PCI Express®, USB, MIPI M-PHY^TM, SATA/SAS, DisplayPort, SD UHS-II, Fibre Channel, memory buses, backplanes, repeaters, active optical cables, Thunderbolt, 10 GbE, 100 GbE (optical and electrical), SFP+, CFP2/4 transceivers, CEI.

Specifications
M8020A J-BERT High-Performance BERT
Model Overview
Model	Description
M8020A-BU1	Bundle consisting of one M9505A 5-slot AXIe Chassis with USB option and one M9537A AXIe Embedded PC Controller
M8020A-BU2	Bundle consisting of one M9505A 5-slot AXIe Chassis with USB option
M8020A-BU3	Bundle consisting of one M9505A 5-slot AXIe Chassis and one M9537A AXIe Embedded PC Controller with 16GB RAM and Windows 10 Option
